Introduction to Dust-Proof & IP66 Waterproof LED Explosion-Proof Light

• Preventing internal electrical sparks or heat from igniting external flammable substances

• Blocking 100% of dust, dirt, and airborne particles from infiltrating internal components

• Withstanding high-pressure water jets, heavy rain, snow, and humidity without failure

• Delivering consistent, high-quality illumination for 24/7 industrial operations

Core Definition & Key Attributes

1. IP66 Ingress Protection: Dust-tight (no dust ingress) and protected against high-pressure water jets from any direction (IEC 60529 standard).

2. Explosion-Proof Certification: Compliant with ATEX, IECEx, UL 844, or GB 3836 standards, rated for Zone 1/2 (gas) or Zone 21/22 (dust) hazardous areas.

3. Extreme Environmental Resistance: Operating temperature range of -40°C (-40°F) to +65°C (149°F); corrosion-resistant housing for chemical, salt, and vapor exposure.

4. Impact & Vibration Protection: IK08–IK10 impact ratings; reinforced, vibration-resistant construction for high-traffic or machinery-heavy zones.

5. Industrial-Grade Durability: Die-cast aluminum or stainless steel housing; shatterproof lenses; sealed electrical components for 50,000–100,000 hours of lifespan.

Understanding Industrial Hazardous Environments: Why Specialized Lights Are Mandatory

1. Explosive Gas & Vapor Atmospheres (Zone 1/2)

2. Combustible Dust Hazards (Zone 21/22)

3. Severe Moisture & Water Exposure

4. Corrosive Chemical & Vapor Exposure

5. Extreme Temperature Fluctuations

6. Physical Impact & Vibration

Summary of Industrial Hazards & LED Explosion-Proof Solutions

Core Features of Dust-Proof & IP66 Waterproof LED Explosion-Proof Light

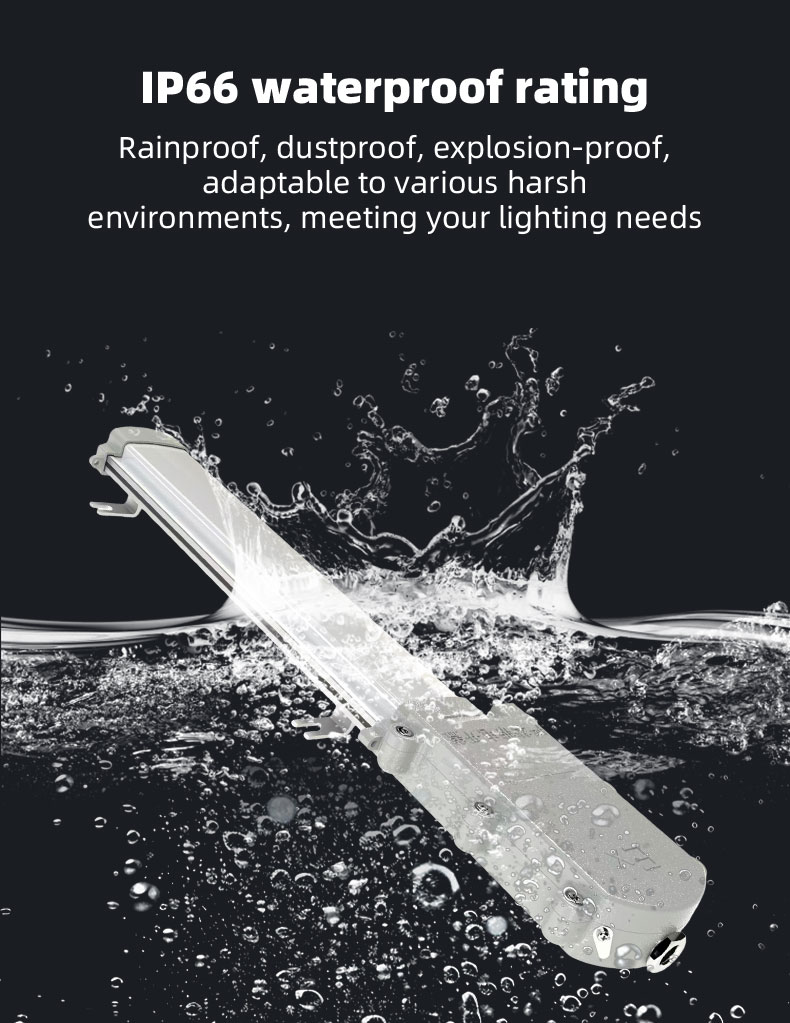

1. IP66 Ingress Protection (Dust-Tight & High-Pressure Water Resistant)

• First Digit (6) – Dust Protection: Dust-tight—0% ingress of dust, dirt, or airborne particles. Critical for combustible dust zones (grain silos, coal mines) where dust buildup causes explosions or fixture damage.

• Second Digit (6) – Water Protection: Protected against high-pressure water jets (12.5mm nozzle) from any direction. Withstands heavy rain, snow, car wash overspray, and industrial high-pressure cleaning—ideal for offshore, marine, and wet industrial sites.

2. Global Explosion-Proof Certifications (ATEX, IECEx, UL 844, GB 3836)

• ATEX (EU Directive 2014/34/EU): Mandatory for EU/EEA markets; certified for Zone 1/2 (gas) and Zone 21/22 (dust). Marking example: Ex d IIC T6 Gb (flameproof, IIC gas group, T6 temperature class).

• IECEx: Global certification recognized in 100+ countries; aligns with IEC 60079 standards for hazardous locations.

• UL 844 (North America): Benchmark for U.S./Canadian hazardous location lighting; covers Class I (gas), Class II (dust), Class III (fibers).

• GB 3836 (China): Equivalent to IEC 60079; mandatory for Chinese industrial hazardous zones.

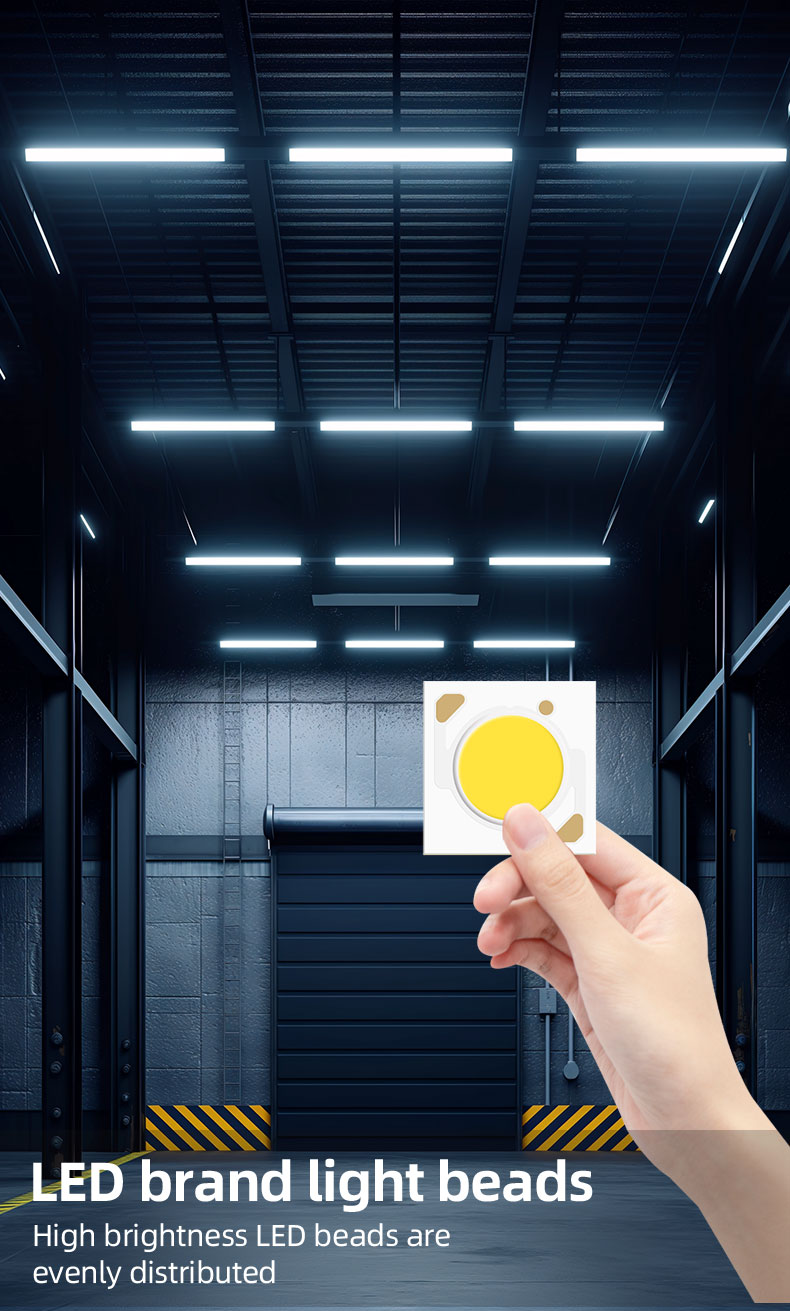

3. Premium LED Chip Technology (High Efficacy, Long Lifespan)

• Luminous Efficacy: 120–180 lm/W (standard: 120–150 lm/W; premium: 150–180 lm/W) for maximum brightness with minimal energy use.

• L70 Lifespan: 50,000–100,000 hours (5.7–11.4 years of 24/7 operation) before brightness drops to 70% of original.

• Low Lumen Depreciation: ≤30% depreciation after 100,000 hours for consistent long-term illumination.

• High CRI (Color Rendering Index): Ra >80 (standard) or Ra >90 (premium) for accurate color perception—critical for industrial inspection, machinery operation, and security camera clarity.

• CCT Options: 4000K (neutral white, standard industrial), 5000K (daylight white, high-security zones), 3000K (warm white, perimeter lighting).

4. Rugged, Corrosion-Resistant Housing Construction

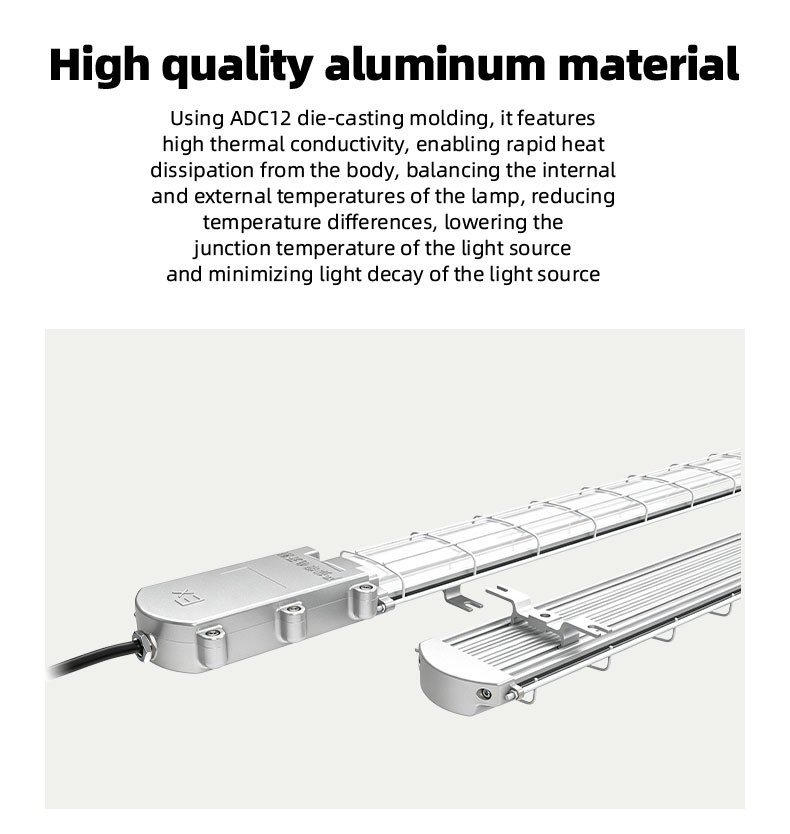

• Material: Marine-grade die-cast aluminum (standard) or stainless steel (304/316) (premium, for extreme corrosion zones like offshore platforms).

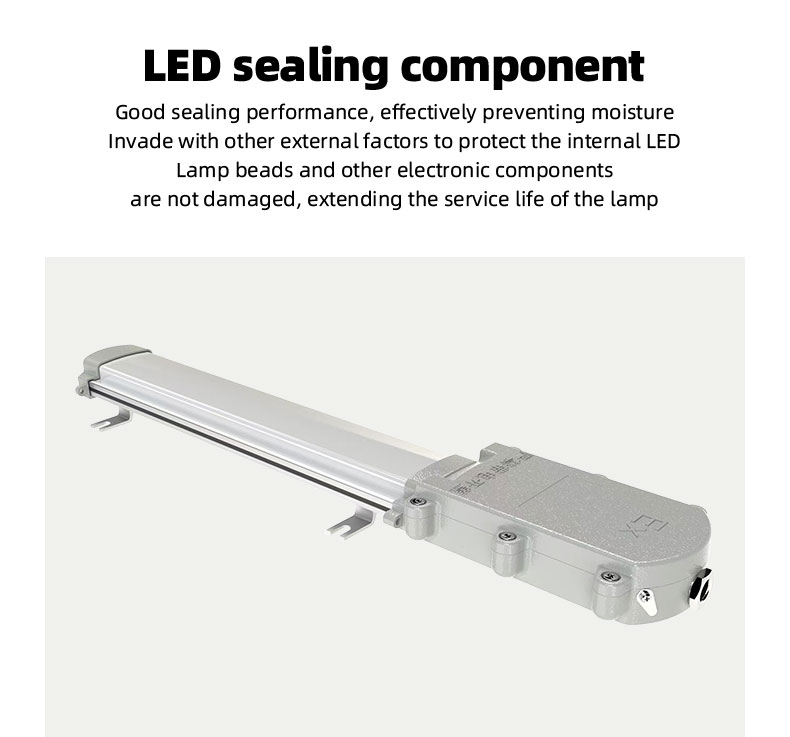

• Design: One-piece, seamless construction to eliminate dust/water entry points; reinforced ribs for structural integrity.

• Coating: Double-layer chemical-resistant powder coating (polyester/epoxy) resistant to gasoline, acids, salt spray, and industrial vapors; 10+ years of outdoor exposure without peeling/fading.

• Anti-Corrosion Grade: WF2 (industry standard) for 360+ hours of salt spray resistance—ideal for marine, coastal, and chemical plant environments.

5. Industrial-Grade Drivers & Electrical Components

• Wide Voltage Compatibility: AC 100–277V (standard) or 347–480V (high-voltage industrial); 50/60Hz frequency support for global use.

• High Power Factor (PF >0.95): Reduces energy waste and meets industrial efficiency standards.

• Low THD (<15%): Minimizes electrical interference and protects sensitive industrial equipment.

• Surge Protection: 6kV–10kV surge protection to guard against lightning strikes and power fluctuations—critical for 24/7 outdoor industrial operation.

• Flicker-Free Operation: High-frequency drivers eliminate flickering, reducing eye strain and improving security camera clarity.

• Dimming Compatibility: 0–10V dimming, photocell (dusk-to-dawn), or motion sensor options for 20–30% additional energy savings in low-traffic zones.

6. Advanced Thermal Management (Critical for Explosion Safety)

• Integrated Heat Sink: Large, finned heat sink (part of aluminum housing) for efficient passive heat dissipation; no moving parts (reduces maintenance).

• Thermal Interface Material (TIM): High-conductivity paste/pad between LED chips and heat sink to maximize heat transfer.

• Temperature-Controlled Drivers: Automatically adjust power in extreme heat/cold to protect components and maintain surface temperature within T4–T6 limits.

• Sealed Heat Sink Design: Prevents dust/debris from clogging fins—critical for combustible dust zones.

7. Impact & Vibration Resistance (IK08–IK10 Ratings)

• IK Rating (Impact Protection):

• IK08: Withstands 5 joules of impact (1.7kg weight dropped 30cm).

• IK10: Withstands 20 joules of impact (5kg weight dropped 40cm)—highest commercial rating, standard for Industrial explosion-proof lights.

• Lens Material: UV-stabilized shatterproof polycarbonate—resists cracking, breaking, and UV fading; smooth surface for easy cleaning.

• Vibration Resistance: Reinforced mounting brackets and internal component securing to withstand machinery vibration (10–100Hz).

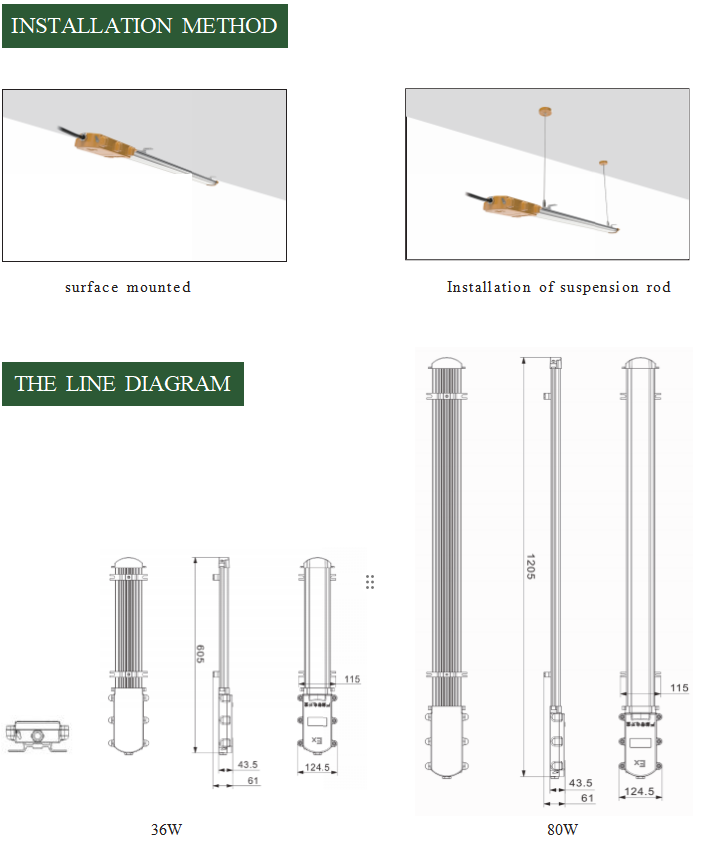

8. Versatile Mounting & Low Maintenance Design

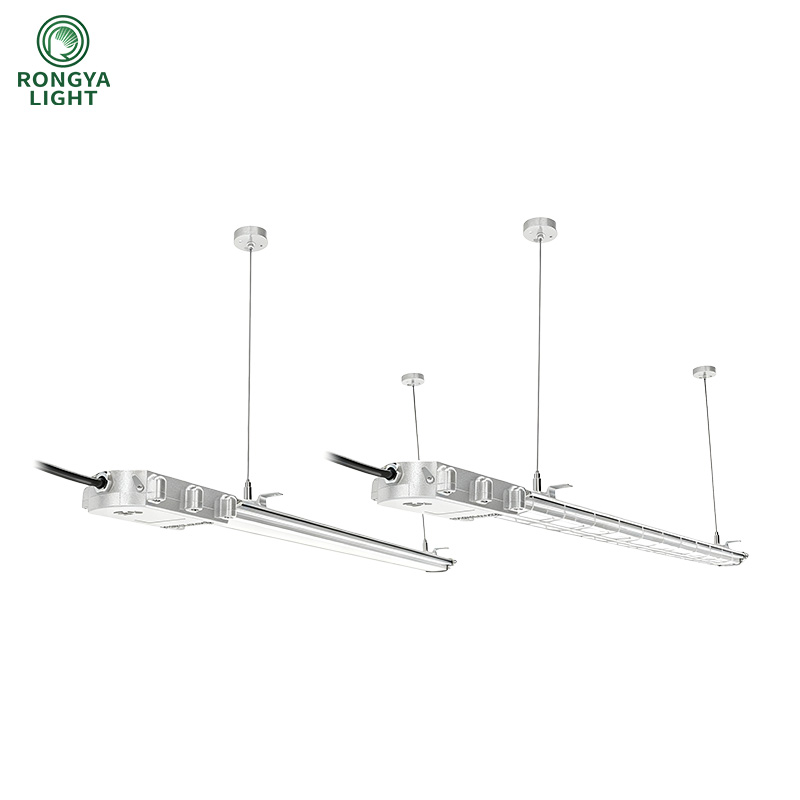

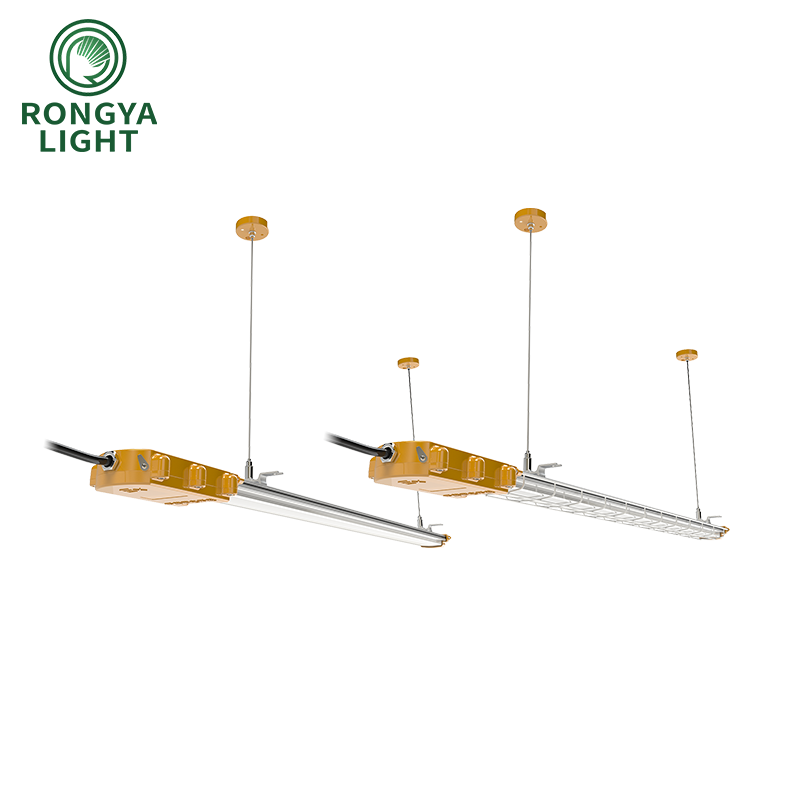

• Mounting Options: Surface, pendant, wall, pole, or bracket mount—compatible with industrial ceilings, walls, and machinery.

• Tool-Free Access: Sealed, quick-release covers for easy driver replacement (no specialized tools).

• Low Maintenance: No consumable parts (bulbs, ballasts); only annual lens cleaning and quarterly visual inspections.

• Long Warranty: 5–10 year warranties (industry standard for industrial-grade explosion-proof lights).

Core Specifications Table: Dust-Proof & IP66 Waterproof LED Explosion-Proof Light

Standard & Premium Model Specifications

Beam Angle & Distribution Specifications

Advantages of Dust-Proof & IP66 Waterproof LED Explosion-Proof Light Over Traditional Explosion-Proof Lighting

1. Unmatched Energy Efficiency (60–80% Savings)

• 400W Metal Halide (MH): Consumes 400W + 60W (ballast) = 460W total; delivers ~22,000 lm (48 lm/W efficacy).

• 250W High-Pressure Sodium (HPS): Consumes 250W + 40W (ballast) = 290W total; delivers ~16,000 lm (55 lm/W efficacy).

• Fluorescent Explosion-Proof: Consumes 80W + 20W (ballast) = 100W total; delivers ~5,000 lm (50 lm/W efficacy).

• 100W LED: Consumes 100W total; delivers ~15,000 lm (150 lm/W efficacy)—78% less energy than 400W MH.

• 150W LED: Consumes 150W total; delivers ~27,000 lm (180 lm/W efficacy)—72% less energy than 400W MH.

2. Dramatically Longer Lifespan (10–15 Years vs. 1–3 Years)

• Metal Halide: 15,000–20,000 hours (1.7–2.3 years of 24/7 operation).

• High-Pressure Sodium: 20,000–30,000 hours (2.3–3.4 years of 24/7 operation).

• Fluorescent: 10,000–15,000 hours (1.1–1.7 years of 24/7 operation).

• Standard Model: 50,000 hours (5.7 years of 24/7 operation).

• Premium Model: 100,000 hours (11.4 years of 24/7 operation)—5–10x longer than traditional lights.

3. Reduced Maintenance Costs (80%+ Savings)

• Bulb replacement every 1–3 years (requires shutting down equipment and entering hazardous zones).

• Ballast replacement every 3–5 years.

• Frequent cleaning to remove dust/corrosion from lenses.

• Repairs for water damage, corrosion, or electrical faults.

4. Instant Full Illumination (No Warm-Up Delay)

• Metal Halide: Requires 3–5 minutes to reach full brightness; slow restrike (5–10 minutes) after power interruption.

• High-Pressure Sodium: Requires 2–3 minutes to reach full brightness; slow restrike.

• Fluorescent: Requires 1–2 minutes to reach full brightness.

5. Superior Light Quality & Uniformity

• Metal Halide: Glare-heavy, uneven light distribution, dark spots, CRI<60 (poor color accuracy).

• High-Pressure Sodium: Severe glare, yellow/orange light, CRI<25 (terrible color accuracy—unsafe for inspection).

• Fluorescent: Dim, flickering light, uneven coverage, CRI<70.

6. Enhanced Safety & Compliance (Explosion & Fire Risk Elimination)

• Lower Surface Temperature: LEDs operate at 50–85°C (T4–T6) vs. 300–400°C for MH bulbs—reducing the risk of igniting flammable gases/dust.

• Explosion Containment: Sealed, heavy-duty enclosures contain internal sparks/heat, preventing external ignition (ATEX/IECEx/UL 844 certified).

• No Toxic Materials: LEDs contain no mercury, lead, or other hazardous substances—compliant with RoHS and environmental regulations.

• Reduced Fire Risk: No hot bulbs or ballasts; sealed electrical components prevent short circuits and electrical fires.

7. Environmental Sustainability

• Lower Carbon Emissions: 60–80% less energy use = proportional reduction in greenhouse gas emissions.

• Longer Lifespan: Fewer fixtures manufactured and disposed of, reducing industrial waste.

• Recyclable Materials: Aluminum housings and PC lenses are fully recyclable at end-of-life.

8. Smart Control Compatibility (Additional Energy Savings)

• Photocells: Dusk-to-dawn operation (auto-on at sunset, auto-off at sunrise) for outdoor industrial zones.

• Motion Sensors: Dim to 20% brightness during low-traffic periods; full brightness when motion is detected (20–30% additional energy savings).

• 0–10V Dimming: Manual or scheduled dimming for Customized light levels in different industrial zones.

• IoT Connectivity: Remote monitoring and control (status, brightness, energy usage) via cloud-based platforms—critical for remote industrial sites (offshore platforms, mines).

LED vs. Traditional Explosion-Proof Lighting Comparison Table

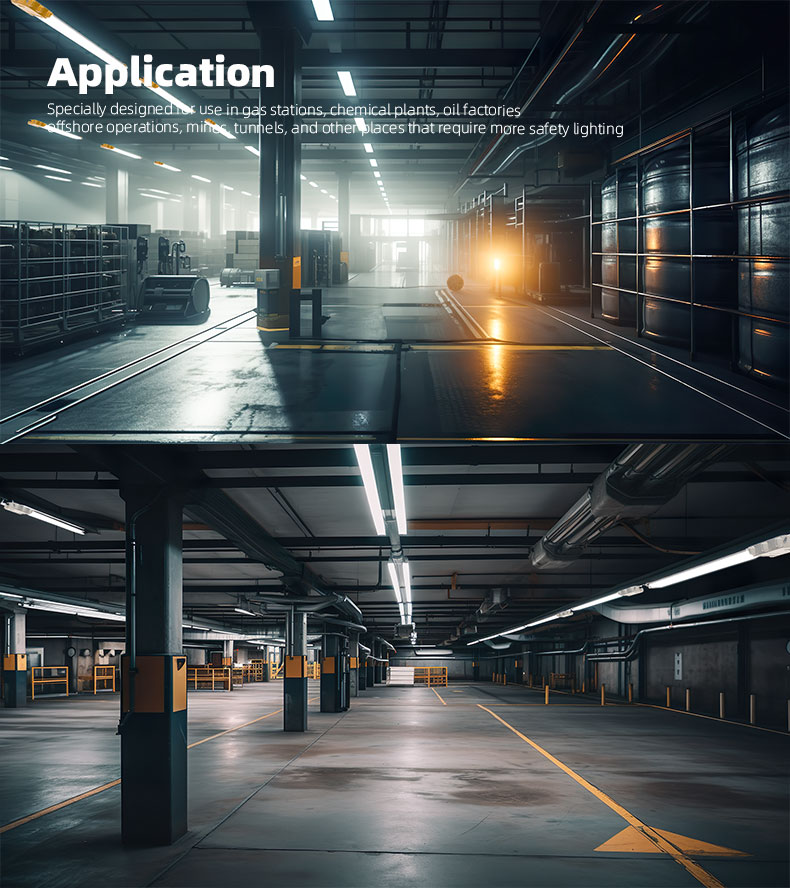

Industrial Applications of Dust-Proof & IP66 Waterproof LED Explosion-Proof Light

1. Oil & Gas Refineries (Zone 1/2 Gas)

• Key Zones: Processing units, distillation towers, pump stations, storage tanks, loading docks.

• Requirements: Explosion-proof (Ex d IIC T6), IP66, WF2 anti-corrosion, 5000K daylight white, IK10.

• Recommended Specs: 100W–150W, 90°–120° beam angle, ATEX/IECEx/UL 844 certified.



2. Chemical & Pharmaceutical Plants (Zone 1/2 Gas + Corrosive Vapors)

• Key Zones: Reaction vessels, mixing areas, solvent storage, clean rooms, packaging zones.

• Requirements: Explosion-proof (Ex d IIC T6), IP66, WF2 anti-corrosion, 4000K neutral white, high CRI (>90).

• Recommended Specs: 70W–120W, 90° beam angle, ATEX/IECEx/GB 3836 certified.



3. Offshore Oil Platforms & Marine Docks (Zone 1/2 Gas + Saltwater Corrosion)

• Key Zones: Drilling decks, production areas, living quarters, helipads, loading docks.

• Requirements: Explosion-proof (Ex d IIC T6), IP66, 316 stainless steel housing, WF2 anti-corrosion, 5000K daylight white.

• Recommended Specs: 150W–200W, 120° beam angle, ATEX/IECEx/UL 844 certified.



4. Grain Silos & Flour Mills (Zone 21/22 Combustible Dust)

• Key Zones: Storage silos, milling areas, conveyor belts, packaging zones.

• Requirements: Dust-tight IP66, Ex tD A21 certified, smooth easy-clean surfaces, 4000K neutral white, IK10.

• Recommended Specs: 100W–150W, 120° beam angle, ATEX/IECEx certified.



  grain silo explosion-proof LED light

5. Coal Mines & Coal Processing Plants (Zone 21/22 Dust + Moisture)

• Key Zones: Underground tunnels, mining faces, conveyor belts, coal storage yards, processing plants.

• Requirements: Explosion-proof (Ex d IIC T6), dust-tight IP66, vibration-resistant, 5000K daylight white, IK10.

• Recommended Specs: 70W–120W, 90° beam angle, ATEX/IECEx certified.



  coal mine explosion-proof LED light

6. Wastewater Treatment Plants (Wet + Corrosive + Hazardous Gases)

• Key Zones: Digester tanks, pump stations, sludge processing areas, chemical storage.

• Requirements: Explosion-proof (Ex d IIC T6), IP66, WF2 anti-corrosion, 4000K neutral white, waterproof cable glands.

• Recommended Specs: 50W–100W, 90°–120° beam angle, ATEX/IECEx certified.



  wastewater treatment plant explosion-proof LED light

7. Automotive Paint Booths & Body Shops (Zone 1/2 Gas + Dust)

• Key Zones: Paint booths, drying ovens, mixing rooms, body shops.

• Requirements: Explosion-proof (Ex d IIC T6), IP66, high CRI (>90), 5000K daylight white, easy-clean surfaces.

• Recommended Specs: 70W–100W, 90° beam angle, ATEX/IECEx certified.



  automotive paint booth explosion-proof LED light

8. Industrial Warehouses & High-Bay Facilities (Dust + Impact + Vibration)

• Key Zones: High-bay storage, loading/unloading areas, forklift aisles, inventory zones.

• Requirements: IP66 dust-tight, IK10 impact resistance, vibration-resistant, 4000K–5000K, wide beam angle.

• Recommended Specs: 100W–200W, 60°–90° beam angle, ATEX/IECEx certified.



Installation & Maintenance Best Practices

Installation Best Practices

1. Compliance with Hazardous Location Codes: Follow national electrical codes (NEC), ATEX/IECEx directives, and local hazardous location standards for wiring, mounting, and zoning. Only install fixtures rated for the specific zone (Zone 1/2, Zone 21/22) and gas/dust group.

2. Mounting Height & Spacing:

• High-bay warehouses: Mount at 8–12m height; space 6–8m apart (90° beam angle).

• Refinery/chemical plant: Mount at 4–6m height; space 5–7m apart (120° beam angle).

• Offshore platforms: Mount at 5–7m height; space 7–9m apart (120° beam angle).

3. Wiring & Sealing (Critical for IP66):

• Use waterproof, explosion-proof cable glands and sealed junction boxes to maintain IP66 rating.

• Ensure all electrical connections are tight, insulated, and sealed to prevent water/dust infiltration and short circuits.

• Use certified explosion-proof wiring (e.g., armored cable) for hazardous zones.

4. Thermal Management:

• Do not cover or block heat sink fins—ensure unobstructed airflow for passive cooling.

• Mount fixtures on flat, level surfaces to avoid warping and ensure proper sealing of gaskets.

5. Grounding & Surge Protection:

• Properly ground all fixtures to protect against lightning strikes and electrical faults.

• Connect surge protectors (6kV–10kV) as recommended for outdoor or high-risk industrial zones.

6. Vibration Isolation:

• Use vibration-dampening mounting brackets for machinery-heavy zones (minimizes component stress and loosening).

Maintenance Best Practices (Minimal & Safe)

1. Annual Lens Cleaning: Wipe lenses with a soft, damp cloth to remove dust, dirt, and chemical residues. Avoid harsh chemicals (e.g., bleach, solvents) that can damage polycarbonate lenses. For combustible dust zones, use a vacuum with a HEPA filter to avoid dust dispersion.

2. Quarterly Visual Inspection:

• Check for loose mounting brackets, screws, or cable glands.

• Inspect gaskets and seals for wear, cracking, or corrosion—replace damaged parts immediately to maintain IP66 rating.

• Check housing for corrosion, dents, or damage—address early to prevent failure.

3. Electrical Inspection (Every 2–3 Years): Have a qualified, certified electrician inspect wiring connections, drivers, surge protectors, and grounding for wear, damage, or corrosion. Replace faulty components promptly.

4. Sensor Calibration (Annual): Test photocells, motion sensors, and dimming systems to ensure proper operation. Adjust sensitivity or timing as needed for energy efficiency and safety.

5. Lumen Output Testing (Every 5 Years): Use a luxmeter to verify light output. Clean lenses or replace fixtures if brightness drops below 70% of original (L70 threshold).

6. Certification Verification: Ensure fixtures remain compliant with ATEX/IECEx/UL 844 standards—do not modify or open sealed housings (voids warranty and certifications).

Safety Precautions (Non-Negotiable for Hazardous Zones)

• Always disconnect power before installation, maintenance, or cleaning—lockout/tagout (LOTO) procedures mandatory for industrial hazardous zones.

• Use certified safety gear: Explosion-proof gloves, safety glasses, hard hats, and non-sparking tools when working in explosive atmospheres.

• Do not open fixture housing: Internal components are sealed and non-serviceable. Opening the housing voids warranties, breaks IP66/explosion-proof ratings, and creates ignition risks.

• Proper disposal at end-of-life: Recycle aluminum housings and PC lenses at certified recycling facilities; dispose of electronic components (drivers, chips) at certified e-waste facilities—compliant with RoHS and environmental regulations.

• Training requirement: Only trained, certified personnel should install or maintain explosion-proof lighting in hazardous zones.

Frequently Asked Questions (FAQ)

Q1: What does IP66 mean for industrial explosion-proof lights?

Q2: What is the difference between Zone 1 and Zone 2 hazardous areas?

Q3: Do I need ATEX and IECEx certifications for global industrial projects?

Q4: What temperature class (T4–T6) should I choose for my facility?

Q5: Can I retrofit existing metal halide explosion-proof lights with LED?

Q6: How long do dust-proof & IP66 waterproof LED explosion-proof lights last?

Q7: Are LED explosion-proof lights safe for grain silos and combustible dust zones?

Q8: What maintenance is required for LED explosion-proof lights?

Conclusion

• 60–80% lower energy costs

• 80%+ reduced maintenance expenses

• 10–15 years of reliable, 24/7 operation

• Unmatched explosion safety (ATEX/IECEx/UL 844 certified)

• IP66 dust/water protection for harsh environments

• Superior light quality for productivity and security

Introduction to Energy-Efficient Gas Station & Workshop LED Explosion Proof Light Fixture

Core Definition & Non-Negotiable Attributes

1. Explosion-Proof Certification: ATEX/IECEx/UL 844 rated for Zone 2 (gas) and Zone 22 (dust)—the primary zones for gas stations and workshops.

2. IP66 Ingress Protection: Dust-tight and resistant to high-pressure water jets (rain, car washes, workshop cleaning).

3. High Energy Efficiency: 120–180 lm/W efficacy, delivering maximum brightness with minimal power draw.

4. Industrial Durability: Die-cast aluminum housing, IK08–IK10 impact resistance, and WF2 corrosion protection.

5. Extreme Temperature Tolerance: Operating range -40°C (-40°F) to +60°C (140°F) for year-round reliability.

Understanding Gas Station & Workshop Hazardous Environments

1. Gas Station Hazard Profile (Zone 2 Gas + Harsh Outdoor Conditions)

• Flammable Fuel Vapors: Gasoline, diesel, and ethanol vapors (heavier than air) accumulate near dispensers and canopies—ignitable by sparks or hot surfaces.

• Moisture & Water: Rain, snow, car wash overspray, and high humidity corrode fixtures and cause short circuits.

• UV Radiation: Direct sunlight fades plastic lenses and degrades seals over time.

• Physical Impact: Low-hanging canopy lights risk collision with vehicles; vandalism is common.

• Corrosive Chemicals: Road salt, cleaning agents, and fuel residues eat away at unprotected metal.

2. Industrial Workshop Hazard Profile (Zone 2/22 Dust/Gas + Industrial Abuse)

• Combustible Dust: Metal shavings, wood dust, or paint powder forms explosive mixtures when airborne.

• Flammable Solvents: Paint thinners, degreasers, and cleaning chemicals release ignitable vapors.

• Heavy Vibration: Machinery (lathes, saws, presses) creates constant vibration, loosening standard fixtures.

• Impact & Debris: Flying metal chips, tools, and forklift collisions damage unprotected lights.

• Corrosive Fumes: Welding fumes, metal oxides, and chemical vapors corrode housings.

Summary of Hazards & LED Explosion Proof Solutions

Core Features of Energy-Efficient Gas Station & Workshop LED Explosion Proof Light Fixture

1. Global Explosion-Proof Certifications (Zone 2/22 Compliant)

• ATEX (EU): Ex d IIC T6 Gb (flameproof, IIC gas group, T6 ≤85°C surface temp) for Zone 2 gas; Ex tD A21 IP66 T85°C for Zone 22 dust.

• IECEx (Global): Matches ATEX ratings; recognized in 100+ countries for international projects.

• UL 844 (North America): Class I Division 2 (gas) and Class II Division 2 (dust) certification for U.S./Canadian compliance.

• Temperature Class T6: Critical for gas stations/workshops—≤85°C surface temp avoids igniting low-flashpoint fuels/solvents.

2. IP66 Dust & Waterproof Protection

• 6 (Dust-Tight): 0% ingress of dust, dirt, or airborne particles—critical for workshop combustible dust zones.

• 6 (Waterproof): Resists high-pressure water jets (12.5mm nozzle) from any direction—withstands gas station car washes and workshop pressure washing.

3. Premium Energy-Efficient LED Chip Technology

• Luminous Efficacy: 120–180 lm/W (standard: 120–150 lm/W; premium: 150–180 lm/W).

• L70 Lifespan: 50,000–100,000 hours (5.7–11.4 years of 24/7 operation).

• CCT Options: 4000K (neutral white, workshop standard), 5000K (daylight white, gas station canopy), 3000K (warm white, perimeter).

• High CRI: Ra >80 (standard) or Ra >90 (premium) for accurate color perception—critical for workshop machinery inspection and gas station pump display readability.

• Low Lumen Depreciation: ≤30% after 100,000 hours for consistent long-term brightness.

4. Rugged Corrosion-Resistant Housing (WF2 Grade)

• Material: Marine-grade die-cast aluminum (standard) or 316 stainless steel (premium, for coastal gas stations/chemical workshops).

• Design: One-piece seamless construction eliminates dust/water entry points; reinforced ribs for structural integrity.

• Coating: Double-layer chemical-resistant powder coating (polyester/epoxy) resists gasoline, salt spray, and workshop chemicals.

• Anti-Corrosion Grade: WF2 (360+ hours salt spray resistance)—ideal for gas station road salt and workshop chemical fumes.

5. Industrial-Grade Drivers & Electrical Components

• Wide Voltage: AC 100–277V (standard) or 347–480V (high-voltage workshops); 50/60Hz global compatibility.

• High Power Factor: PF >0.95 reduces energy waste and meets industrial efficiency standards.

• Low THD:<15% minimizes electrical interference with sensitive workshop machinery.

• Surge Protection: 6kV–10kV guards against lightning (gas stations) and power fluctuations (workshops).

• Flicker-Free: High-frequency drivers eliminate flickering—critical for workshop eye safety and gas station security camera clarity.

• Dimming Options: 0–10V, photocell (gas station dusk-to-dawn), or motion sensor (workshop low-traffic areas) for 20–30% extra savings.

6. Advanced Thermal Management (Explosion Safety Critical)

• Integrated Heat Sink: Large finned aluminum heat sink (passive, no moving parts) dissipates heat efficiently.

• Thermal Interface Material (TIM): High-conductivity paste between chips and heat sink maximizes heat transfer.

• Temperature-Controlled Drivers: Adjust power in extreme heat/cold to keep surface temp within T6 limits.

• Sealed Heat Sink: Prevents workshop dust clogging and gas station debris buildup.

7. Impact & Vibration Resistance (IK08–IK10)

• IK Rating: IK08 (5 joules) standard; IK10 (20 joules, 5kg drop) premium—highest commercial impact resistance.

• Lens: UV-stabilized shatterproof polycarbonate (gas station UV resistance, workshop impact resistance).

• Vibration Resistance: Reinforced mounting brackets and internal component securing for workshop machinery vibration (10–100Hz).

8. Versatile Mounting & Low Maintenance

• Mounting Options: Surface (canopy/workshop ceiling), pendant (high-bay workshops), wall (perimeter), recessed (sleek canopy).

• Tool-Free Access: Sealed quick-release covers for driver replacement (no specialized tools).

• Low Maintenance: No consumable parts (bulbs/ballasts); only annual lens cleaning and quarterly inspections.

• Long Warranty: 5–10 year warranties (industry standard for industrial explosion-proof lights).

Core Specifications Table: Energy-Efficient Gas Station & Workshop LED Explosion Proof Light Fixture

Standard & Premium Model Specifications

Beam Angle Specifications (Gas Station & Workshop)

Advantages of Energy-Efficient LED Explosion Proof Lights Over Traditional Lighting

1. 60–80% Energy Savings (Massive Cost Reduction)

• 400W MH: 460W total (400W + 60W ballast), ~22,000 lm (48 lm/W).

• 250W HPS: 290W total (250W + 40W ballast), ~16,000 lm (55 lm/W).

• 80W Fluorescent: 100W total (80W + 20W ballast), ~5,000 lm (50 lm/W).

• 100W LED: 100W total, ~15,000 lm (150 lm/W) → 78% less energy than 400W MH.

• 150W LED: 150W total, ~27,000 lm (180 lm/W) → 72% less energy than 400W MH.

2. 5–10x Longer Lifespan (Fewer Replacements)

• MH: 15,000–20,000 hours (1.7–2.3 years 24/7).

• HPS: 20,000–30,000 hours (2.3–3.4 years 24/7).

• Fluorescent: 10,000–15,000 hours (1.1–1.7 years 24/7).

• Standard: 50,000 hours (5.7 years).

• Premium: 100,000 hours (11.4 years).

3. 80%+ Lower Maintenance Costs

• Bulb/ballast replacements every 1–3 years.

• Frequent cleaning for dust/corrosion.

• Repairs for water damage/corrosion.

4. Instant Brightness (No Warm-Up Delay)

• MH: 3–5 minutes to full brightness; 5–10 minutes restrike.

• HPS: 2–3 minutes to full brightness; slow restrike.

• LED: Instant 100% brightness (0s); instant restrike after power loss.

5. Superior Light Quality (Safer Work & Customer Experience)

• LED: Uniform, glare-controlled illumination; CRI >80–90; no dark spots.

• MH: Glare-heavy, uneven; CRI 50–60.

• HPS: Severe glare, yellow light; CRI 15–25 (unsafe for workshop inspection).

6. Enhanced Explosion Safety (T6 Temperature Class)

• LED: Surface temp ≤85°C (T6) → no ignition of fuel/solvent vapors.

• MH: 300–400°C → extreme ignition risk.

• HPS: 250–350°C → high ignition risk.

7. Environmental Sustainability

• 60–80% lower carbon emissions.

• Longer lifespan → less waste.

• Recyclable aluminum/PC materials.

8. Smart Control Compatibility

• Gas stations: Photocells for dusk-to-dawn operation.

• Workshops: Motion sensors to dim to 20% brightness when idle.

• IoT connectivity: Remote monitoring for multi-site operations.

LED vs. Traditional Explosion Proof Lighting Comparison

Applications of Energy-Efficient Gas Station & Workshop LED Explosion Proof Light Fixture

1. Gas Station Canopy Lighting (Main Application)

• Zones: Refueling areas, canopy ceilings, dispenser islands.

• Hazards: Fuel vapors (Zone 2), moisture, UV, impact.

• Requirements: IP66, IK10, ATEX/IECEx Zone 2, 5000K, 120° beam.

• Recommended Specs: 80W–150W, 120° beam, 10kV surge protection.



2. Gas Station Perimeter & Tank Farm Lighting

• Zones: Fuel storage tanks, perimeter fences, walkways.

• Hazards: Fuel vapors (Zone 2), corrosion, motion detection needs.

• Requirements: IP66, WF2, motion sensor compatible, 5000K.

• Recommended Specs: 100W–200W, 120° beam, ATEX/IECEx certified.



3. Industrial Workshop High-Bay Lighting

• Zones: Assembly lines, machining areas, storage bays.

• Hazards: Combustible dust (Zone 22), vibration, impact.

• Requirements: IP66, IK10, vibration-resistant, 4000K, Ra >90.

• Recommended Specs: 100W–200W, 60°–90° beam, motion sensor compatible.



4. Workshop Paint & Chemical Mixing Zones

• Zones: Paint booths, solvent storage, mixing areas.

• Hazards: Solvent vapors (Zone 2), chemical corrosion.

• Requirements: IP66, WF2, ATEX/IECEx Zone 2, 5000K.

• Recommended Specs: 70W–120W, 90° beam, high CRI (>90).



5. Auto Repair Workshop Bays

• Zones: Service bays, lift areas, tire shops.

• Hazards: Oil vapors, impact, moisture.

• Requirements: IP66, IK10, 4000K, wide beam.

• Recommended Specs: 80W–150W, 120° beam, easy-clean lens.



Installation & Maintenance Best Practices

Installation Best Practices

1. Hazardous Zone Compliance: Only install fixtures rated for the specific zone (Zone 2 gas/Zone 22 dust).

2. Mounting Height & Spacing:

• Gas station canopy: 4–5m height, 3–4m spacing (120° beam).

• Workshop high-bay: 8–12m height, 6–8m spacing (60° beam).

3. Wiring & Sealing: Use explosion-proof cable glands and sealed junction boxes to maintain IP66 rating.

4. Thermal Management: Do not block heat sink fins—ensure unobstructed airflow.

5. Grounding: Properly ground fixtures to protect against lightning (gas stations) and electrical faults.

6. Vibration Isolation: Use vibration-dampening brackets for workshop machinery zones.

Maintenance Best Practices

1. Annual Lens Cleaning: Wipe lenses with a soft damp cloth; avoid harsh chemicals.

2. Quarterly Visual Inspection: Check for loose brackets, damaged gaskets, or corrosion.

3. Electrical Inspection (Every 2–3 Years): Certified electrician checks wiring, drivers, and surge protectors.

4. Sensor Calibration (Annual): Test photocells/motion sensors for proper operation.

5. Lumen Testing (Every 5 Years): Verify brightness; clean lenses if output drops below 70%.

Safety Precautions

• Disconnect power before all maintenance (LOTO procedures).

• Use non-sparking tools in hazardous zones.

• Do not open sealed housing—voids certifications and safety.

• Proper disposal: Recycle aluminum housings; dispose of electronics at e-waste facilities.

Frequently Asked Questions (FAQ)

Q1: Do gas station lights need to be explosion-proof?

Q2: What’s the difference between IP65 and IP66 for gas stations?

Q3: Can I use explosion-proof LEDs in woodworking workshops?

Q4: What temperature class is best for gas stations?

Q5: Can I retrofit existing metal halide explosion-proof lights?

Q6: How long do these LEDs last in gas stations/workshops?

Q7: Are motion sensors useful for workshop explosion-proof lights?

Conclusion

• 60–80% lower energy bills

• 80%+ reduced maintenance costs

• 10+ years of reliable 24/7 operation

• ATEX/IECEx/UL 844 explosion safety

• IP66 dust/water protection

• Superior light quality for safety and productivity
