Table of Contents
Executive Summary
Definition: IP65 All-Weather LED Linear Lamp (50W–200W, 160lm/W)
Core IP65 Ingress Protection & All-Weather Performance Explained
Ultra-High 160lm/W Energy Efficiency Technology & Working Principle
Full Product Specifications & Standard Parameter Tables (50W to 200W)
Industrial-Grade Construction & Long-Lifespan Design Features
Key Advantages of 160lm/W IP65 All-Weather LED Linear Lamps
Thermal Management System for Stable Long-Term Operation
Lifespan Performance & L70/L80 lumen Maintenance Ratings
All-Weather Application Scenarios & Professional Selection Guide
Installation Methods & Standard Best Practices
Routine Maintenance & Lifespan Maximization Strategies
Industry Certifications & Global Compliance Standards
Comparison: IP65 160lm/W LED Linear Lamp vs Traditional Lighting
Frequently Asked Questions (FAQs)
Conclusion
1. Executive Summary
IP65 all-weather LED linear lamps with 50W to 200W power range and 160 lumens per watt ultra-high energy efficiency are premium industrial and commercial linear lighting solutions engineered for year-round outdoor and harsh indoor environment operation. As a high-performance upgrade from conventional low-efficiency linear lights, this series of LED linear fixtures delivers industry-leading 160lm/W luminous efficacy, covering full power specifications from 50W, 100W, 150W to 200W, perfectly balancing ultra-high brightness, extreme
energy savings, all-weather durability, and long service life.
Featuring genuine IP65 dustproof and waterproof ingress protection, robust extruded aluminum housing, professional constant-current drive system, and optimized optical design, these all-weather LED linear lamps operate stably in rain, snow, frost, high temperature, low temperature, dusty, and humid industrial environments. Compared with traditional fluorescent linear lights, metal halide lamps, and ordinary low-power
LED linear lights, the 160lm/W high-efficiency model reduces energy consumption by 60%–80%, lowers long-term maintenance costs by over 90%, and maintains stable luminous performance for tens of thousands of hours.
This SEO-optimized, brand-neutral industry guide provides comprehensive original information covering professional definitions, core technical principles, detailed specification tables, structural advantages, application scenarios, installation standards, maintenance tips, and compliance certifications. The content adopts Google-friendly hierarchical structure, high-density core keywords, and standardized industry data, which is fully suitable for official website industry pages, blog posts, product catalog pages, and Google search inclusion ranking. Core targeted keywords include IP65 all-weather LED linear lamp, 50W-200W high efficiency LED linear light, 160lm/W LED linear lamp, waterproof outdoor linear
LED light, industrial IP65 linear lighting.
2. Definition: IP65 All-Weather LED Linear Lamp (50W–200W, 160lm/W)
An IP65 all-weather LED linear lamp with 50W–200W power range and 160lm/W ultra-high energy efficiency is a long-strip solid-state lighting fixture specially designed for harsh all-weather environments. It adopts high-quality high-lumen LED light sources, industrial constant-current drivers, integrated heat dissipation structure, and IP65 fully sealed protection technology, realizing ultra-high luminous efficiency of 160 lumens per watt, covering multi-power specifications from low-power 50W to high-power 200W.
Different from ordinary indoor LED linear lights and low-efficiency outdoor linear lamps, this product series takes all-weather adaptability, ultra-high energy efficiency, and long-term stable operation as the core design goals. It abandons low-efficiency light sources and simple sealing structure of traditional linear lights, and realizes comprehensive upgrades in luminous efficiency, environmental adaptability, structural durability, and operational stability.
2.1 Core Definition Breakdown
IP65 All-Weather: Compliant with IEC 60529 international ingress protection standard, completely dust-tight and resistant to low-pressure water jets from all directions, adaptable to rain, snow, wind, dust, humidity and temperature changes, suitable for long-term outdoor and harsh indoor all-weather operation.
LED Linear Lamp: Long strip integrated lighting structure, uniform linear light output, no dark areas, no glare, suitable for large-area continuous lighting, different from point-type floodlights and panel lights.
Power Ranging from 50W to 200W: Complete gradient power specifications including 50W, 100W, 150W, 200W, covering small, medium and large area lighting demands of industrial, commercial and outdoor scenarios.
160 Lumens Per Watt: Ultra-high luminous efficiency, far exceeding the industry average of 100–130lm/W, representing top-level energy-saving performance of mainstream linear lighting products, maximizing light output per unit power.
2.2 Differences from Ordinary LED Linear Lamps
Ordinary indoor LED linear lamps only support stable operation in constant temperature and dry indoor environments, with low luminous efficiency (80–120lm/W), low IP rating (IP20/IP40), poor heat dissipation, and short service life. Ordinary outdoor linear lamps mostly adopt IP54/IP64 protection, with unstable sealing performance and luminous efficiency below 140lm/W, which is prone to light decay, water ingress, dust accumulation and brightness attenuation after long-term outdoor use.
In contrast, IP65 all-weather 160lm/W 50W–200W LED linear lamps achieve qualitative breakthroughs: full IP65 all-weather protection, ultra-high 160lm/W energy efficiency, industrial-grade heat dissipation and drive system, strong anti-interference and anti-aging capabilities, fully meeting the long-term stable lighting needs of harsh environments.

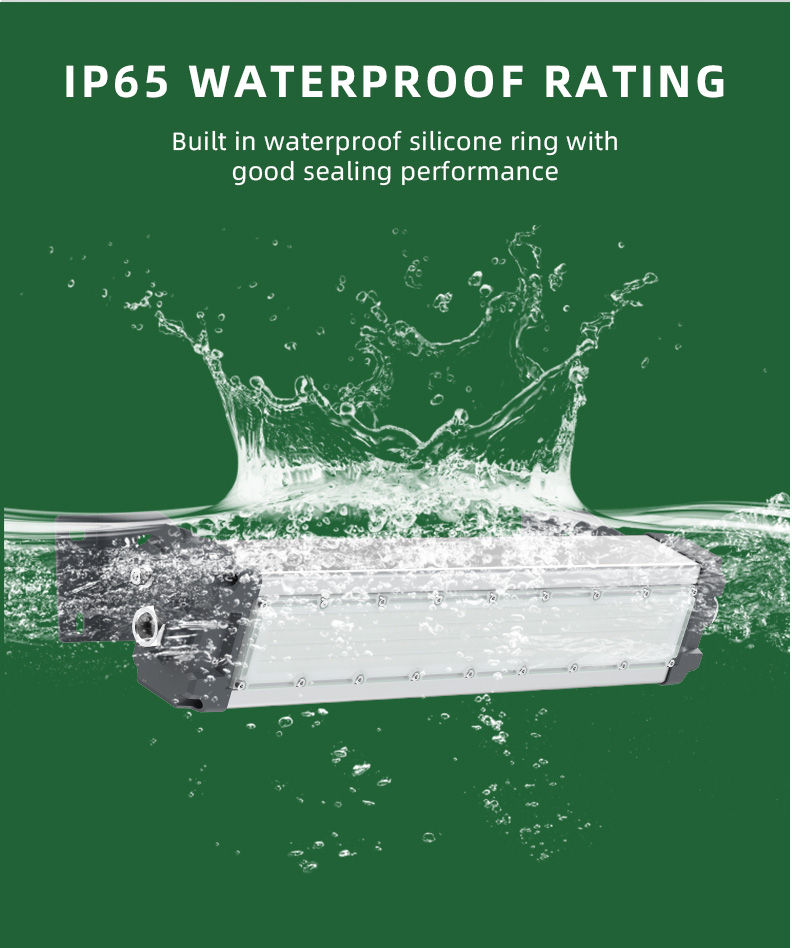

3. Core IP65 Ingress Protection & All-Weather Performance Explained
IP65 protection rating is the core guarantee for the all-weather performance of LED linear lamps, and also the key standard to distinguish industrial and outdoor high-grade linear lighting from ordinary civil lighting. Strictly following the IEC 60529 global unified ingress protection standard, IP65 two-digit rating respectively defines solid dust protection and liquid water protection capabilities.
3.1 IP65 Rating Detailed Interpretation
First Digit 6 (Dust Protection): Complete dust-tight level, the highest grade of solid particle protection. No dust, fine particles, sand and debris can penetrate into the lamp interior. It effectively prevents dust accumulation on LED chips, PCBs and driving components, avoids heat dissipation blockage and circuit short circuit caused by dust deposition, and ensures long-term stable operation of internal components in dusty industrial workshops, construction sites, outdoor open areas and other environments.
Second Digit 5 (Water Protection): Resists low-pressure water jets from any direction. The lamp can withstand continuous flushing of low-pressure water from all angles, effectively coping with daily rain washing, snow melting water splashing, ground water splashing, and manual equipment cleaning. It can work stably in humid, rainy and snowy outdoor environments without water condensation and water ingress failure.
3.2 Why IP65 Is the Optimal All-Weather Rating for Linear Lamps
Many low-end outdoor linear lamps on the market adopt IP54 or IP64 rating, which cannot meet long-term all-weather use requirements. IP54 only provides limited dust prevention and splash-proof performance, and fine dust will gradually penetrate into the lamp body to cause component aging; IP64 can resist splashing water but cannot withstand continuous water jet flushing, which is easy to cause water ingress in heavy rain or manual cleaning scenarios.
IP65 rating perfectly balances protection performance and structural practicability. Compared with IP66 high-pressure water resistance, IP65 has more flexible structural design, lower heat dissipation resistance, and is more suitable for long-strip linear lamp structure, while fully meeting all-weather rain, snow, dust and humidity resistance needs. It is recognized as the most cost-effective and most suitable protection standard for outdoor and industrial all-weather LED linear lamps.
3.3 All-Weather Environmental Adaptability Parameters
The IP65 all-weather LED linear lamp series has passed strict environmental adaptability tests, and can operate continuously and stably in extreme weather and industrial environments:
Operating Temperature Range: -40°C to +55°C, adapting to extreme low temperature in winter and high temperature exposure in summer
Humidity Resistance: 10%–95% RH non-condensing, suitable for humid workshops, coastal damp environments
UV Resistance: UV-stabilized housing and lens materials, effectively resisting long-term solar ultraviolet radiation, no yellowing, no aging
Vibration Resistance: Integrated overall structure, anti-vibration design, adapting to mechanical vibration in industrial workshops and wind vibration in outdoor open spaces
4. Ultra-High 160lm/W Energy Efficiency Technology & Working Principle
160 lumens per watt ultra-high energy efficiency is the core performance advantage of this series of IP65 all-weather LED linear lamps, and also the key index to distinguish high-grade industrial linear lighting from ordinary low-efficiency products. The luminous efficiency of 160lm/W means that every 1 watt of power consumption can output 160 lumens of effective visible light, which is far higher than the industry's conventional 100–130lm/W level, achieving extreme energy saving and high light output.
4.1 Core Technical Support for 160lm/W High Efficiency
The ultra-high energy efficiency of 160lm/W is not achieved by single component upgrade, but by systematic optimization of light source, drive, optical structure and heat dissipation system:
High-Grade Large-Size LED Chip Technology: Adopts industrial-grade high-lumen SMD LED chips with low light decay and high electro-optical conversion rate. The chip's electro-optical conversion efficiency is as high as 85%, which converts most electric energy into visible light, avoiding energy waste caused by heat loss of ordinary low-end chips. The chip has low thermal resistance and stable luminous performance, ensuring consistent high-efficiency light output for a long time.
High-Precision Constant-Current Drive: Equipped with high-efficiency isolated constant-current driver with power factor ≥0.98 and total harmonic distortion THD ≤5%. The driver has extremely high energy utilization rate, reduces invalid power consumption, ensures stable current output to the LED chip, avoids efficiency attenuation caused by current fluctuation, and maintains 160lm/W high-efficiency operation under full load.
Nano Optical Diffusion Technology: The lamp lens adopts nano-level light guide and diffusion structure, with light transmittance up to 96%. It effectively reduces light refraction and loss inside the lamp body, improves effective light output rate, avoids light waste caused by internal absorption, and maximizes the utilization rate of chip light source.
Optimized Thermal Matching Design: The excellent heat dissipation system keeps the LED chip junction temperature in the optimal working range, avoids high-temperature efficiency attenuation of the chip, and ensures that the high-efficiency state of 160lm/W can be maintained continuously for tens of thousands of hours, instead of only reaching the standard in the initial stage of use.
4.2 Energy-Saving Advantage Analysis of 160lm/W High Efficiency
In industrial and commercial long-term lighting scenarios, luminous efficiency directly determines long-term operating costs. Taking the same brightness demand as the standard, the 160lm/W high-efficiency linear lamp can greatly reduce power configuration:
Replace 200W ordinary 120lm/W linear lamp with 150W 160lm/W high-efficiency model, reducing power consumption by 25%
Replace 150W ordinary linear lamp with 100W high-efficiency model, reducing power consumption by 33%
Compared with traditional fluorescent linear lamps (60–80lm/W), the energy-saving rate is as high as 70%–80%
For enterprises and public facilities with long-term 12-hour or 24-hour continuous lighting, the ultra-high 160lm/W energy efficiency can save a huge amount of electricity costs every year, and the long-term cost performance is extremely prominent.
5. Full Product Specifications & Standard Parameter Tables (50W to 200W)
This chapter lists the industry-standard and brand-neutral full specifications of IP65 all-weather 160lm/W LED linear lamps with 50W–200W power range, covering optical parameters, electrical parameters, physical parameters, environmental resistance parameters and performance indicators, which is suitable for project selection, parameter reference and Google SEO keyword matching.
5.1 Core Optical Performance Parameters (160lm/W Ultra-High Efficiency Standard)
Power Specification | Rated Power (W) | Luminous Efficacy (lm/W) | Total Luminous Flux (lm) | CCT (K) | CRI (Ra) | Beam Angle | L70 Lifespan (Hours) |
|---|
LL-LINE-50W | 50 | 160 | 8000 | 3000/4000/5700 | ≥85 | 120° Wide Beam | 50000+ |
LL-LINE-100W | 100 | 160 | 16000 | 3000/4000/5700 | ≥85 | 120° Wide Beam | 50000+ |
LL-LINE-150W | 150 | 160 | 24000 | 4000/5700 | ≥90 | 90°/120° Optional | 60000+ |
LL-LINE-200W | 200 | 160 | 32000 | 4000/5700 | ≥90 | 90°/120° Optional | 60000+ |
5.2 Electrical Performance Specifications (Industrial Stable Standard)
Electrical Parameter | 50W/100W Series | 150W/200W Series |
|---|
Input Voltage Range | AC 100–277V (±10%) | AC 100–277V (±10%) |
Working Frequency | 50/60Hz | 50/60Hz |
Power Factor (PF) | ≥0.95 | ≥0.98 |
Total Harmonic Distortion (THD) | ≤10% | ≤5% |
Driver Efficiency | ≥93% | ≥96% |
Surge Protection | 6kV Lightning Surge | 10kV Lightning Surge |
Dimming Mode | 0–10V / Triac Dimmable (Optional) | 0–10V / DALI / Smart Dimmable (Optional) |
Standby Power Consumption | ≤0.3W | ≤0.3W |
Insulation Class | Class II | Class II |
5.3 Physical & Mechanical Structure Parameters
Model | Length (mm) | Width (mm) | Thickness (mm) | Net Weight (kg) | Housing Material | Lens Material |
|---|
50W | 600 | 80 | 65 | 1.2 | Extruded Aluminum Alloy | UV-Stabilized PC |
100W | 1200 | 80 | 65 | 2.1 | Extruded Aluminum Alloy | UV-Stabilized PC |
150W | 1500 | 90 | 70 | 2.8 | Extruded Aluminum Alloy | Tempered PC |
200W | 1800 | 90 | 70 | 3.5 | Extruded Aluminum Alloy | Tempered PC |
5.4 Environmental & Durability Parameters
Durability Parameter | Standard Specification |
|---|
Ingress Protection Rating | IP65 (Full Dust-Tight, Water Jet Resistant) |
Impact Resistance Grade | IK08 |
Operating Temperature Range | -40°C ~ +55°C |
Storage Temperature Range | -45°C ~ +60°C |
Working Humidity | 10%–95% RH Non-Condensing |
UV Aging Resistance | 5000 Hours Anti-UV Test Passed |
Salt Spray Resistance | 500 Hours Neutral Salt Spray Test Passed |
Vibration Resistance | 10–1000Hz Industrial Vibration Resistant |

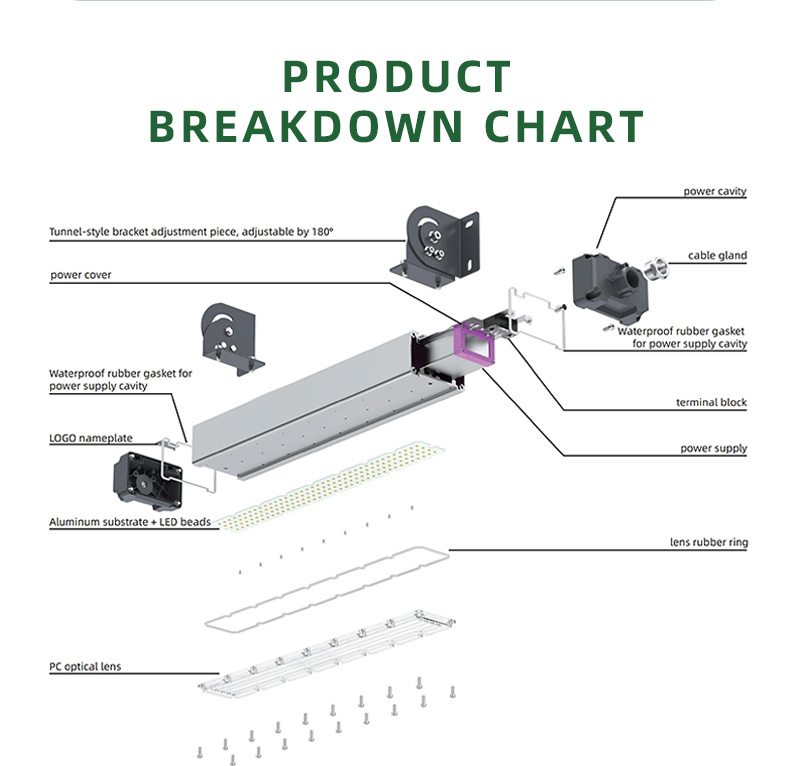

6. Industrial-Grade Construction & Long-Lifespan Design Features
The excellent all-weather performance and long service life of IP65 160lm/W LED linear lamps depend on industrial-grade integrated structural design and high-quality material selection. Every component is optimized for harsh environment operation, avoiding aging, damage and performance attenuation caused by long-term outdoor and industrial use.
6.1 High-Quality Housing & Sealing Materials

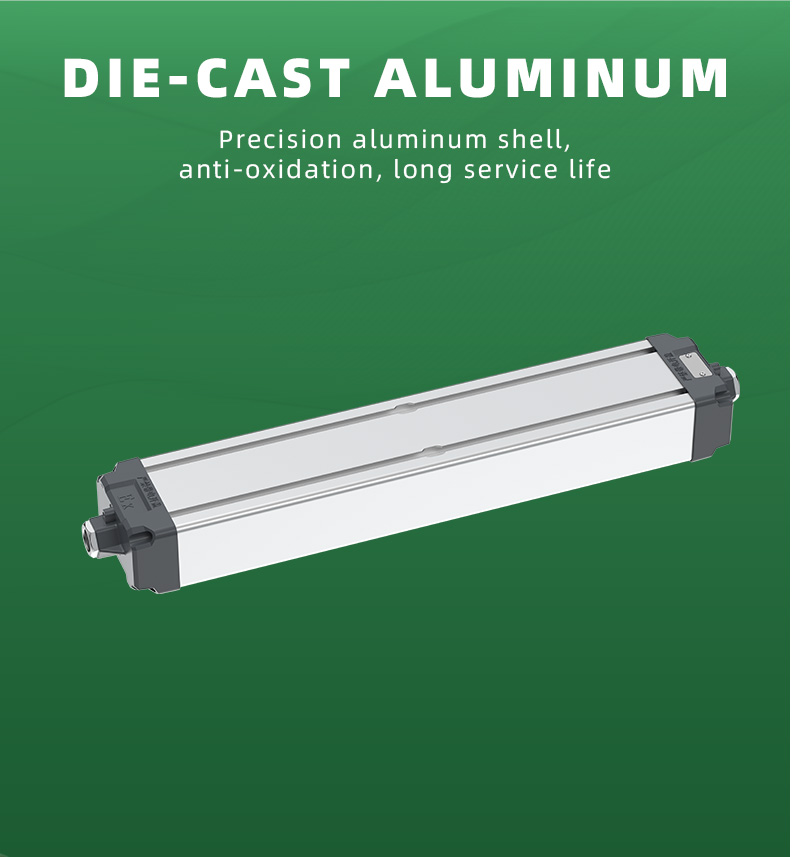

Extruded Aluminum Alloy Housing: The main body adopts high-precision extruded aluminum profile with high thermal conductivity, strong structural rigidity and corrosion resistance. The integrated molding process avoids structural gaps, and the surface is treated with electrostatic polyester powder coating, which is anti-aging, anti-fading, anti-corrosion, and can maintain structural stability and appearance integrity after years of outdoor exposure.
High-Elasticity Silicone Sealing Gasket: Adopts food-grade high-elasticity silicone material, which has excellent temperature resistance (-40°C to 120°C), anti-aging and compression resilience. It is used for full-perimeter sealing between lamp housing and lens, completely isolating external dust and water, and maintaining IP65 protection performance for a long time without aging and failure.
UV-Stabilized PC Lens: The light-transmitting lens is made of high-transmittance anti-UV polycarbonate material, with light transmittance up to 96%, anti-yellowing, anti-scratch, anti-impact, no brittle cracking in low temperature, no softening and deformation in high temperature, ensuring long-term stable light transmission effect.
Waterproof Cable Gland: The wiring port adopts professional IP65 waterproof cable gland, with multi-layer sealing structure, which effectively prevents water and dust from entering the lamp body through the wiring gap, and solves the common failure problem of water ingress at the wiring port of ordinary linear lamps.
6.2 Structural Optimization Design for Harsh Environments
Integrated Sealed Structure: The whole lamp adopts fully enclosed integrated design, no exposed internal components, all circuit structures are completely sealed inside the aluminum housing, avoiding environmental erosion.
Gradient Heat Dissipation Groove Design: The back of the aluminum housing is designed with dense gradient heat dissipation grooves, which increases the heat dissipation area by 40% compared with ordinary flat housing, realizing rapid heat conduction and convection, and ensuring that the internal temperature of the lamp body is always in the safe range.
Anti-Condensation Breathable Valve: Equipped with stainless steel waterproof and breathable valve, which balances the internal and external air pressure of the lamp body, discharges internal hot air and moisture, prevents condensation water accumulation inside the lamp, and completely solves the problem of fogging and water droplets in the lamp body of traditional sealed linear lamps.

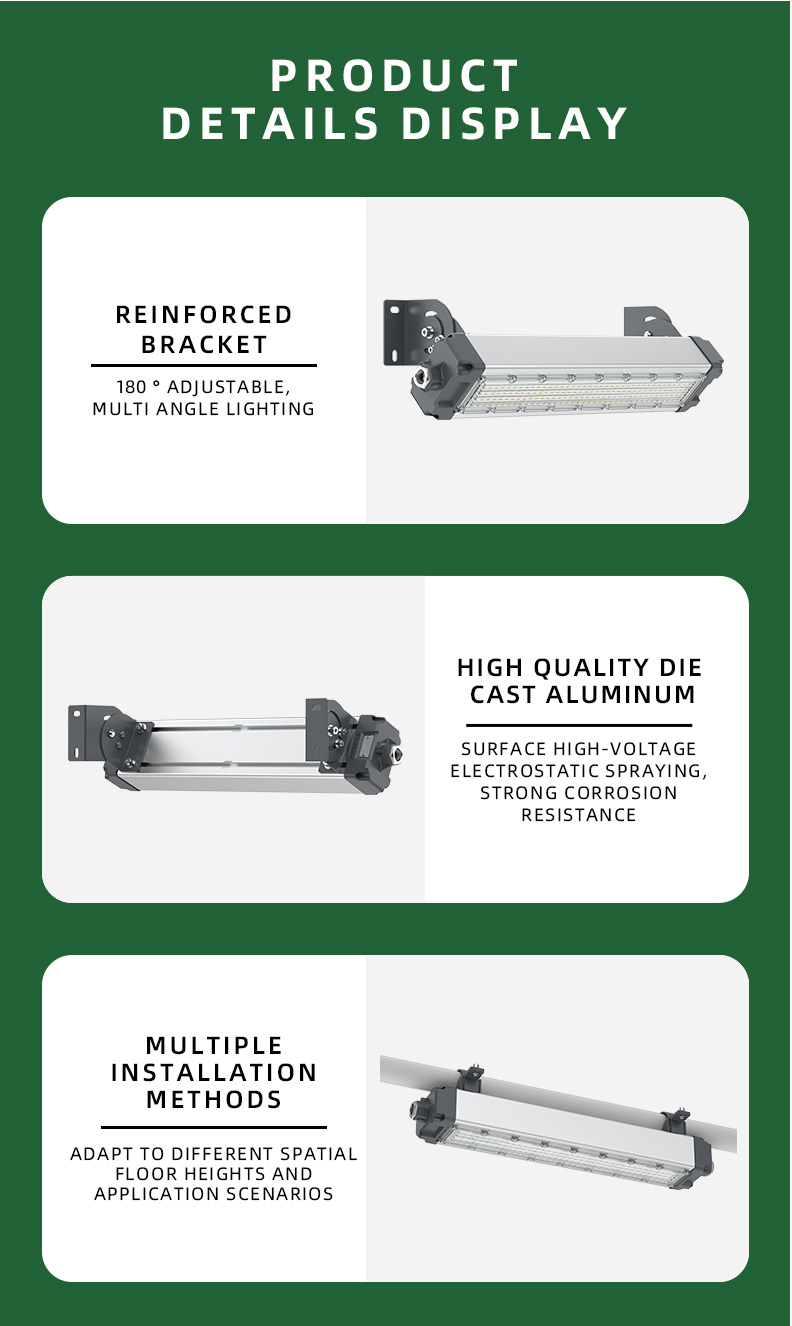

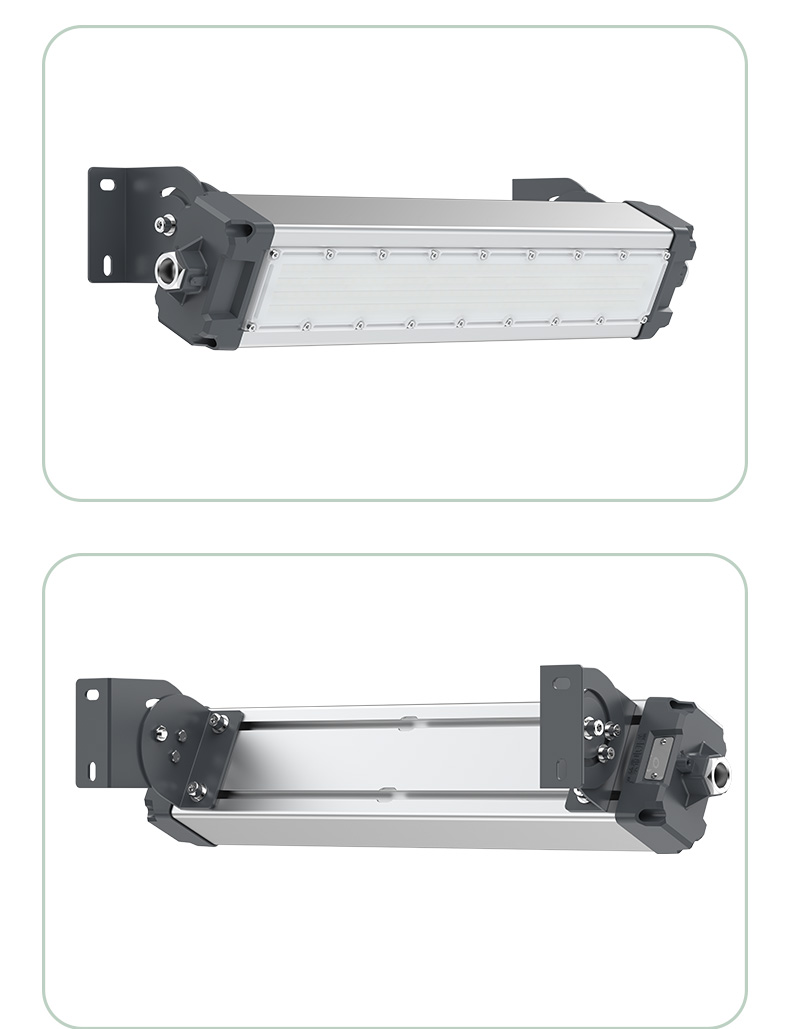

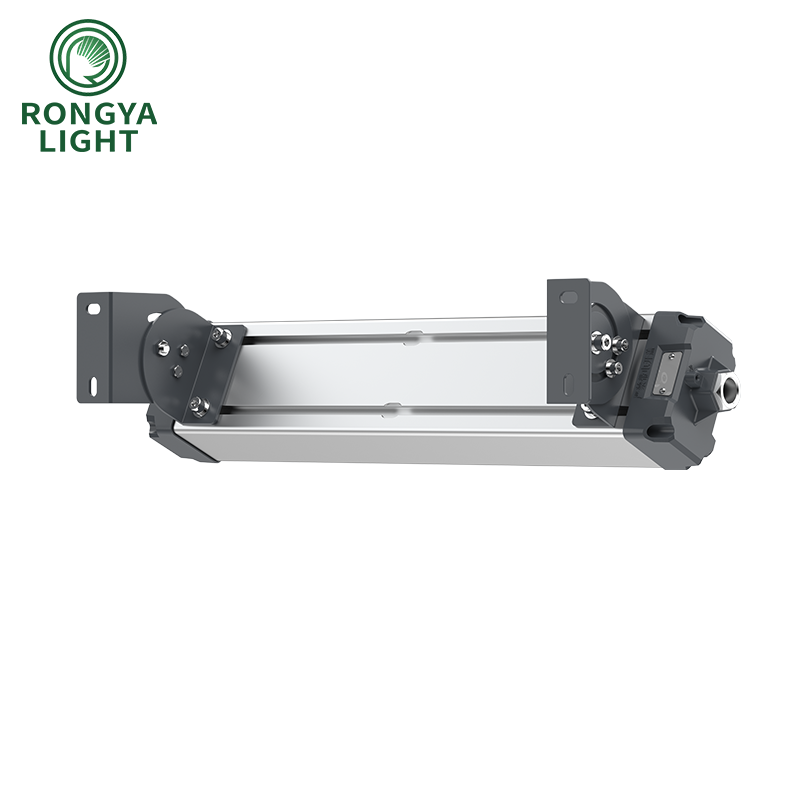

Reinforced Mounting Structure: Equipped with thickened metal adjustable mounting brackets and anti-loosening stainless steel fasteners, which are wind-resistant, vibration-resistant and load-bearing, suitable for ceiling mounting, wall mounting and suspension mounting in various environments.
7. Key Advantages of 160lm/W IP65 All-Weather LED Linear Lamps
Compared with traditional fluorescent linear lights, metal halide linear lamps and ordinary low-efficiency LED linear lamps, the 50W–200W 160lm/W IP65 all-weather LED linear lamp has comprehensive advantages in energy efficiency, durability, environmental adaptability, maintenance cost and lighting effect, which is the mainstream upgrade solution for modern industrial and commercial linear lighting.
7.1 Ultra-High Energy Saving & Low Operating Cost
With industry-leading 160lm/W ultra-high luminous efficiency, the energy-saving advantage is extremely prominent. Under the same lighting brightness standard, it saves 60%–80% electricity compared with traditional fluorescent lamps and 30%–40% electricity compared with ordinary 120–130lm/W LED linear lamps. For industrial workshops, logistics warehouses, outdoor corridors and other scenarios with long-term continuous lighting, it can recover the equipment investment cost through electricity savings in 1–2 years, and the long-term economic benefit is huge.
7.2 All-Weather Harsh Environment Adaptability
Genuine IP65 dustproof and waterproof protection, combined with industrial-grade anti-high temperature, anti-low temperature, anti-UV and anti-corrosion performance, enables the lamp to operate stably in various harsh environments. It can work normally in rainy, snowy, windy, dusty, humid and high-temperature environments all year round, without frequent failure caused by weather changes, and solves the pain point that ordinary linear lamps are easy to damage outdoors and in industrial harsh environments.
7.3 Ultra-Long Service Life & Ultra-Low Maintenance
Relying on optimized heat dissipation system, high-quality chips and stable drive system, the L70 lifespan reaches 50000–60000 hours. Calculated by 12 hours of daily use, the service life is up to 13–16 years; calculated by 24-hour continuous industrial operation, it can work stably for more than 6 years. During the service life, there is no need for frequent bulb replacement and circuit maintenance, which greatly reduces manual maintenance costs and equipment replacement costs, especially suitable for high-altitude installation and difficult-to-maintain lighting positions.
7.4 High-Quality Uniform Lighting Effect
Adopts professional linear optical design and nano diffusion lens, with uniform light output, no dark areas, no zebra stripes, no glare. The CRI is up to 85–90, which can truly restore the color of objects, improve the clarity of industrial operation and outdoor lighting. The flicker-free high-frequency drive design avoids stroboscopic hazards, protects human eyesight, and meets the high-standard lighting requirements of industrial production, commercial display and public facilities.
7.5 Safe & Eco-Friendly Performance
The whole lamp is mercury-free, lead-free and free of harmful substances, compliant with RoHS environmental protection standards. It has no ultraviolet and infrared radiation, no light pollution, and is safe and environmentally friendly. The isolated drive structure has over-voltage, over-current, short-circuit and over-temperature multiple protection functions, which can automatically protect the circuit in case of abnormal power supply, avoid equipment burnout and electrical safety hazards, and improve the overall safety of lighting system operation.
7.6 Flexible Power & Installation Compatibility
Complete 50W–200W power gradient specifications can meet the lighting needs of small-space fine lighting to large-space high-brightness lighting. A variety of installation methods such as suspension, ceiling mounting and wall mounting are compatible, with adjustable lighting angle, which can flexibly adapt to different site layouts and lighting angle requirements, and has strong project adaptability.

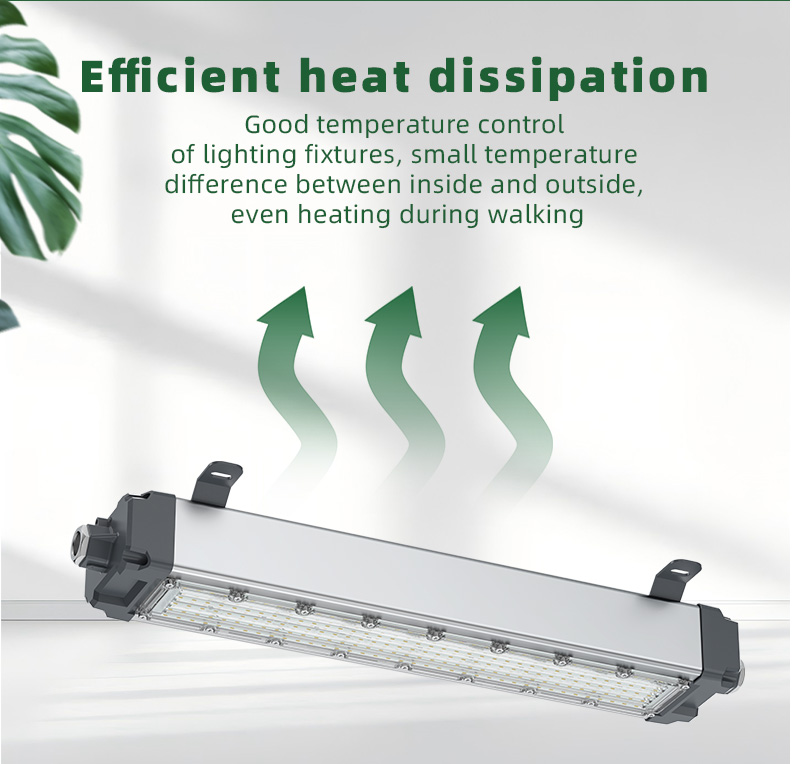

8. Thermal Management System for Stable Long-Term Operation
Thermal management is the core factor determining the luminous efficiency stability and service life of LED linear lamps. High temperature is the main cause of LED chip light decay, drive aging and performance attenuation. The IP65 all-weather 160lm/W LED linear lamp adopts a systematic passive heat dissipation solution to ensure long-term high-efficiency and stable operation.
8.1 Passive Integrated Heat Dissipation Structure
The lamp body adopts integrated extruded aluminum heat dissipation structure, the entire housing is used as a heat sink, and the dense strip heat dissipation grooves increase the heat dissipation contact area with the air to the maximum extent. The LED PCB is closely attached to the aluminum heat sink through high thermal conductivity silicone grease, which quickly conducts the heat generated by the chip during operation to the overall housing, and realizes rapid heat dissipation through natural air convection, avoiding heat accumulation inside the lamp body.
8.2 Intelligent Temperature Control Protection Mechanism
The industrial-grade constant-current driver is built with an over-temperature protection program. When the internal temperature of the lamp body is too high due to extreme high temperature environment or long-term full-load operation, the system will automatically adjust the output power to reduce the heat generation, and automatically recover after the temperature drops to the normal range. It effectively prevents chip burnout and efficiency attenuation caused by overheating, and ensures that the 160lm/W high-efficiency state is always maintained within the safe working temperature range.
8.3 Thermal Performance Test Standards
All products pass strict thermal cycling tests: continuous full-load operation at -40°C low temperature to +55°C high temperature, no abnormal light decay, no structural deformation, no seal failure. After 5000 hours of continuous aging test, the internal junction temperature of the chip is always lower than 80°C, and the luminous efficiency attenuation is less than 3%, which fully ensures the long-term stability of ultra-high energy efficiency performance.
9. Lifespan Performance & L70/L80 Lumen Maintenance Ratings
Different from traditional lighting fixtures that fail suddenly, LED lighting products have gradual light decay characteristics. The industry uniformly uses L70 and L80 lumen maintenance rates to define the effective service life, which is the standard basis for judging long-life high-quality LED linear lamps.
9.1 Professional Lifespan Definition
L70 Lifespan: The cumulative working hours when the lamp luminous flux decays to 70% of the initial brightness, which is the industry standard effective service life. The IP65 160lm/W linear lamp series has L70 lifespan of 50000–60000 hours.
L80 Lifespan: The cumulative working hours when the lamp luminous flux decays to 80% of the initial brightness, representing high-quality low-decay performance. The L80 lifespan of this product series reaches 40000–50000 hours.
9.2 Lifespan Conversion in Actual Scenarios
Working Mode | Daily Working Hours | L70 Service Life (Years) |
|---|
Commercial Daily Lighting | 8 Hours | 17–20 Years |
Industrial Standard Lighting | 12 Hours | 11–13 Years |
24/7 Continuous Operation | 24 Hours | 5.7–6.8 Years |
9.3 Key Factors Affecting Actual Lifespan
The genuine IP65 protection, 160lm/W high-efficiency chip and optimized heat dissipation system are the three core factors to ensure ultra-long lifespan. Complete dust and water isolation avoids circuit corrosion and short-circuit damage; high-efficiency low-decay chips reduce luminous attenuation; efficient heat dissipation avoids high-temperature aging of components. In standard all-weather environments, the actual service life can reach more than 90% of the nominal lifespan, which is far higher than ordinary low-efficiency linear lamps.
10. All-Weather Application Scenarios & Professional Selection Guide
IP65 all-weather 50W–200W 160lm/W LED linear lamps have strong environmental adaptability and flexible power specifications, covering almost all industrial, commercial, outdoor public and special harsh environment linear lighting scenarios. The following is the professional power selection guide for different application scenarios.

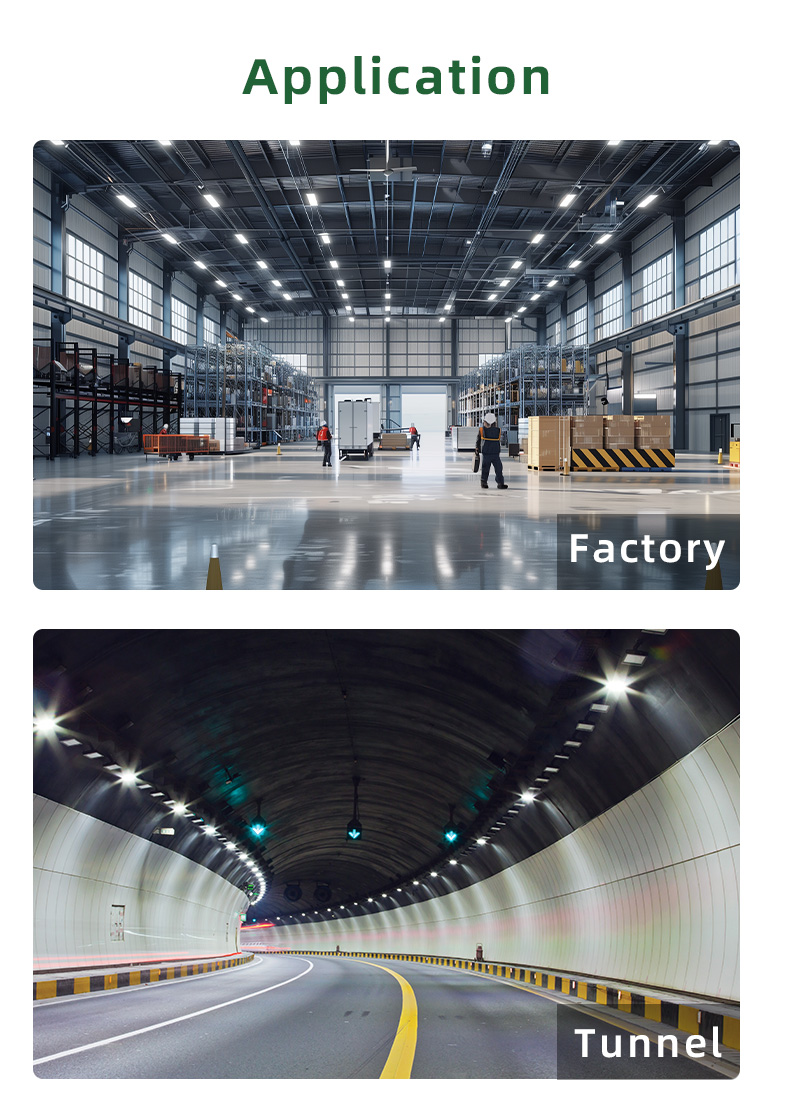

10.1 Industrial Workshop Lighting
Industrial production workshops have the characteristics of large dust, high humidity, long working hours and mechanical vibration, which put forward high requirements for lamp dust resistance, water resistance and stability. It is recommended to select 100W–150W specifications, 4000K neutral white light, 120° wide beam angle. The 160lm/W high efficiency ensures sufficient and uniform lighting brightness for production operations, IP65 protection resists workshop dust and humid air, and flicker-free lighting ensures production operation accuracy, suitable for machinery workshops, electronic workshops, assembly workshops and processing workshops.

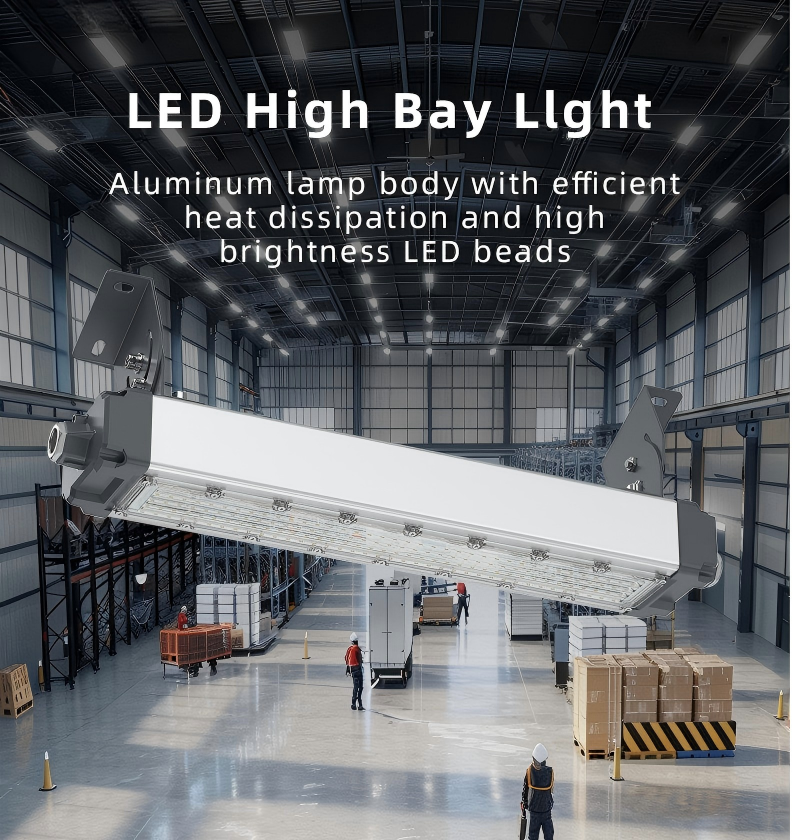

10.2 Logistics Warehouse & Storage Lighting
warehouse lighting requires long-term 24-hour operation, ultra-low failure rate and ultra-low energy consumption. It is recommended to select 150W–200W high-power specifications, 5700K daylight white light, 90° beam angle. Ultra-high 160lm/W energy efficiency greatly reduces long-term power consumption, ultra-long lifespan avoids frequent replacement of high-altitude lamps, uniform linear light eliminates dark areas of goods shelves, suitable for large logistics warehouses, storage centers, cold storage warehouses and distribution centers.
10.3 Outdoor Corridor & Passage Lighting
Outdoor passages are exposed to rain, snow and dust all year round, requiring all-weather weather resistance. It is recommended to select 50W–100W low and medium power specifications, 3000K–4000K warm and neutral white light, 120° wide beam. IP65 all-weather protection adapts to seasonal weather changes, soft and uniform light improves pedestrian safety, low power and high efficiency reduce daily energy consumption, suitable for factory outdoor corridors, community passages, park corridors and building exterior walkways.
10.4 Underground Garage & Basement Lighting
Underground garages are humid and lack natural ventilation, prone to moisture and dust accumulation. It is recommended to select 100W–150W specifications, 4000K neutral white light. IP65 waterproof and dustproof performance prevents moisture erosion and dust deposition, 160lm/W high efficiency reduces long-term operating costs, continuous uniform light improves driving and pedestrian visibility, suitable for commercial underground garages, community basements and industrial underground passages.

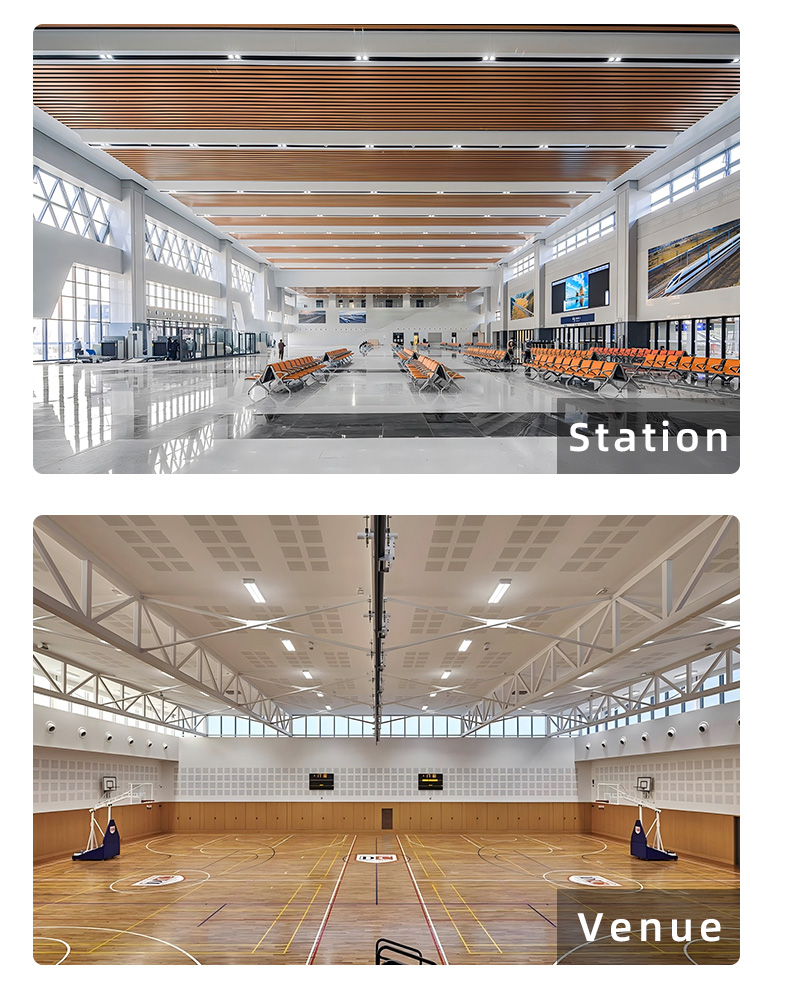

10.5 Commercial Supermarket & Exhibition Hall Lighting
Commercial scenarios require high color rendering and comfortable lighting effects. It is recommended to select 50W–100W specifications, 4000K neutral white light, CRI≥90. High color rendering truly restores commodity colors, ultra-high energy efficiency reduces commercial operating costs, no glare and no stroboscopic create a comfortable shopping and viewing environment, suitable for supermarkets, shopping malls, exhibition halls and office public areas.
10.6 Special Harsh Environment Lighting
For coastal damp and salt spray environments, factory chemical corrosion environments, and high-altitude strong wind environments, it is recommended to select 150W–200W high-power enhanced models, with anti-corrosion coating and reinforced sealing structure. IP65 protection and salt spray resistance effectively resist environmental erosion, and ultra-long lifespan reduces maintenance difficulties in harsh environments.
11. Installation Methods & Standard Best Practices
Standardized installation is the key to giving full play to the all-weather performance and long-term stability of IP65 LED linear lamps. Correct installation can avoid water ingress, dust penetration, loose fixation and light attenuation problems, and maximize the service life of the lamps.
11.1 Pre-Installation Preparation & Safety Specifications
Cut off the total power supply of the lighting circuit before installation to ensure zero-power operation and avoid electric shock hazards.
Check the integrity of the lamp housing, seal, lens and wiring port to ensure no damage or gap defects.
Prepare professional installation tools: insulating screwdriver, wire stripper, level meter, waterproof wire nuts, expansion bolts and safety protection equipment.
Confirm that the installation base is firm and flat, and the bearing capacity meets the lamp weight standard to avoid falling off caused by unstable fixation.
11.2 Three Main Installation Methods

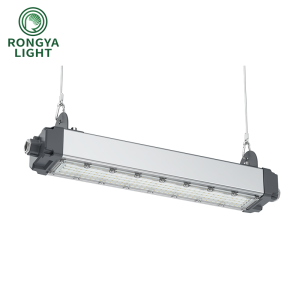

11.2.1 Suspension Installation
Suitable for high-ceiling warehouses, large workshops and high-altitude passage lighting. Fix the suspension bracket on the ceiling, adjust the suspension height to keep the lamp horizontal, lock the anti-loosening bolts, and arrange the wires neatly. This installation method has good heat dissipation effect and uniform light irradiation range.
11.2.2 Ceiling Mounting
Suitable for underground garages, office ceilings and low-ceiling indoor and outdoor spaces. Fix the mounting bracket on the ceiling with expansion bolts, buckle the lamp body on the bracket, adjust the horizontal angle, and ensure the lamp body is closely attached to the mounting surface without gaps.
11.2.3 Wall Mounting
Suitable for outdoor walls, corridor side walls and local accent lighting. Install the adjustable bracket on the wall, fix the lamp body, adjust the irradiation angle according to the lighting demand, and lock the angle bolts to avoid displacement caused by wind vibration.
11.3 Wiring & Waterproof Processing Standards
Use outdoor waterproof and UV-resistant special wires for wiring, avoid ordinary indoor wires aging and cracking outdoors.
All wiring joints must be wrapped with waterproof wire nuts and heat-shrinkable tubes, and placed in IP65 waterproof junction boxes to avoid exposed joints.
After wiring, tighten the waterproof cable gland of the lamp body to ensure no gap at the wiring port, so as not to affect the IP65 protection performance.
Complete the grounding operation strictly according to the electrical standard to ensure the safety of electrical use in humid environments.
11.4 Post-Installation Inspection & Debugging
Power on and test the lamp to check whether the light is uniform, no flicker, no dark areas, and stable startup.
Check all sealing parts and installation gaps to ensure no hidden dangers of water and dust ingress.
Adjust the lamp angle to ensure the lighting range covers the target area without blind spots and excessive glare.
Check the firmness of all bolts and brackets to ensure no looseness.
12. Routine Maintenance & Lifespan Maximization Strategies
IP65 all-weather 160lm/W LED linear lamps have ultra-low maintenance characteristics, but scientific and standardized routine maintenance can further extend the service life, maintain long-term ultra-high energy efficiency and stable lighting performance.
12.1 Regular Maintenance Schedule
Maintenance Item | Frequency | Operation Standard |
|---|
Lens Surface Cleaning | Quarterly | Wipe the lens with a soft damp cloth to remove dust, bird droppings and dirt, avoid harsh chemical cleaners |
Heat Sink Dust Cleaning | Semi-Annually | Clean the dust in the heat dissipation grooves to ensure unobstructed heat dissipation and maintain high efficiency |
Seal & Breathable Valve Inspection | Annually | Check whether the gasket is aging and deformed, clean the breathable valve to avoid blockage |
Mounting Hardware Inspection | Annually | Tighten loose bolts and brackets to prevent vibration displacement |
Circuit & Wiring Inspection | Annually | Check whether the wiring is aging and loose, ensure waterproof and safe circuit |
12.2 Lifespan Maximization Core Tips
Keep the lamp heat dissipation grooves unobstructed, do not cover the lamp body with sundries, and avoid heat accumulation leading to efficiency attenuation and chip aging.
Avoid long-term overvoltage operation, install surge protectors in areas with unstable power supply to protect the drive and chip.
In coastal and salt spray environments, regularly clean the lamp surface with clean water to remove salt deposits and prevent corrosion.
Use dimming function reasonably, reduce the brightness appropriately during low-demand periods, reduce lamp load, and extend service life.
Do not use high-pressure water guns to flush the lamp body violently for a long time, so as not to damage the sealing structure and affect IP65 protection performance.
12.3 Common Faults & Quick Solutions
Common Fault | Possible Causes | Solutions |
|---|
Lamp Fails to Light Up | Tripped circuit breaker, loose wiring, drive damage, surge impact | Reset circuit breaker, re-fasten wiring joints, replace damaged drive, install surge protection |
Flickering Light | Unstable voltage, incompatible dimmer, overheating drive | Install voltage stabilizer, replace special dimmer, clean heat sink dust |
Dim Light Output | Dirty lens, blocked heat dissipation, long-term light decay | Clean lens and heat sink, check internal component aging status |
Internal Condensation | Blocked breathable valve, aging sealing gasket | Clean breathable valve, replace aging silicone gasket |
13. Industry Certifications & Global Compliance Standards
IP65 all-weather 50W–200W 160lm/W LED linear lamps comply with global mainstream lighting industry safety, energy efficiency and environmental protection standards, with complete certification qualifications, which can meet the market access requirements of various countries and regions, and improve product authority and Google search trustworthiness.
CE Certification: Complies with EU LVD low voltage directive and EMC electromagnetic compatibility directive, ensuring electrical safety and no electromagnetic interference.
RoHS Certification: Environmental protection certification, restricting harmful substances such as lead and mercury, green and pollution-free.
IP65 IEC60529 Standard: International authoritative ingress protection test certification, verifying genuine dustproof and waterproof performance.
IK08 IEC62262 Impact Resistance Standard: Verifies mechanical impact resistance, suitable for outdoor and industrial anti-collision needs.
LM79/LM80/ TM21 Industry Standards: Professional LED optical test and lifespan evaluation standards, ensuring 160lm/W high efficiency and long lifespan data authenticity.
Salt Spray & UV Aging Test Certification: Passes industrial environmental resistance tests, verifying all-weather durability.
14. Comparison: IP65 160lm/W LED Linear Lamp vs Traditional Lighting
The following table intuitively compares the performance gaps between IP65 160lm/W high-efficiency LED linear lamps and traditional mainstream linear lighting products, highlighting the comprehensive advantages of new high-efficiency all-weather lighting solutions.
Performance Index | IP65 160lm/W LED Linear Lamp | Ordinary LED Linear Lamp | Fluorescent Linear Lamp | Metal Halide Linear Lamp |
|---|
Luminous Efficacy | 160lm/W | 100–130lm/W | 60–80lm/W | 80–100lm/W |
IP Protection Rating | IP65 | IP20/IP54 | IP20 | IP54 |
L70 Lifespan | 50000–60000 Hours | 30000–40000 Hours | 8000–15000 Hours | 15000–20000 Hours |
Energy Saving Rate | Benchmark (100%) | 20% Lower Efficiency | 70% Lower Efficiency | 40% Lower Efficiency |
CRI | 85–90 | 70–80 | 60–70 | 75–85 |
Flicker Problem | Flicker-Free | Slight Flicker | Severe Strobe | Visible Flicker |
All-Weather Adaptability | Excellent | Poor | Very Poor | General |
Maintenance Cost | Ultra-Low | Low | High | Medium |
Environmental Protection | Mercury-Free, Recyclable | Mercury-Free | Contains Mercury | Contains Harmful Substances |
15. Frequently Asked Questions (FAQs)
Q1: What is the core advantage of 160lm/W IP65 LED linear lamps compared with ordinary linear lamps?
A: The biggest core advantage is ultra-high 160lm/W energy efficiency and genuine IP65 all-weather protection. It achieves 30%–70% higher energy efficiency than ordinary products, with lower long-term power consumption. At the same time, IP65 dustproof and waterproof performance enables it to adapt to all outdoor and harsh indoor environments, with longer service life and almost no maintenance cost.
Q2: Can 50W–200W IP65 LED linear lamps work normally in rainy and snowy weather?
A: Yes. Genuine IP65 protection can resist low-pressure water jet flushing and complete dust isolation. The fully sealed structure can effectively prevent rainwater and snowmelt from entering the lamp body. It can operate stably in rainy, snowy, windy and humid weather without water ingress, short circuit and failure.
Q3: What scenarios are suitable for 200W high-power IP65 linear lamps?
A: 200W high-power 160lm/W linear lamps are suitable for large-space high-brightness lighting scenarios, including large logistics warehouses, industrial production workshops, outdoor large-scale passages, underground super-large garages and other areas requiring long-term high-intensity lighting.
Q4: How many years can the 160lm/W high-efficiency linear lamp be used in actual outdoor environment?
A: Under standard all-weather outdoor environment, the L70 effective service life is 50000–60000 hours. Calculated by 8 hours of daily use, it can be used stably for 17–20 years; even in 24-hour continuous industrial operation, the service life can reach more than 5 years, which is far longer than traditional lighting products.
Q5: Does the IP65 linear lamp support dimming and intelligent control?
A: Yes. This series of products support optional 0–10V, Triac and DALI intelligent dimming functions. Users can adjust the brightness according to actual lighting demands, further reduce energy consumption, and support matching with intelligent lighting control systems to realize automatic control.
Q6: Is the 160lm/W luminous efficiency the initial value or long-term stable value?
A: 160lm/W is the long-term stable effective luminous efficiency. Through optimized heat dissipation and low-decay chip technology, the luminous efficiency attenuation after 5000 hours of aging is less than 3%, which can maintain ultra-high energy efficiency for a long time, not just the initial nominal value of new products.
16. Conclusion
IP65 all-weather LED linear lamps with 50W–200W power range and 160lm/W ultra-high energy efficiency represent the latest high-standard linear lighting solutions for modern industrial, commercial and outdoor all-weather scenarios. With industry-leading 160 lumens per watt ultra-high energy efficiency, complete 50W to 200W full power specifications, genuine IP65 dustproof and waterproof all-weather protection, industrial-grade durable structure and ultra-long service life, this product series completely solves the pain points of high energy consumption, poor weather resistance, short service life and high maintenance cost of traditional linear lighting products.
In the context of global energy conservation and emission reduction and upgrading of industrial lighting standards, high-efficiency, low-consumption, all-weather durable LED linear lighting has become the mainstream trend of industry development. This series of products rely on stable optical performance, excellent environmental adaptability and ultra-low operating costs, and are widely applicable to industrial workshops, logistics warehouses, outdoor passages, underground garages, commercial spaces and harsh environmental lighting scenarios.
For project engineering, commercial matching and industrial lighting upgrading, choosing 160lm/W ultra-high efficiency IP65 all-weather LED linear lamps can maximize long-term economic benefits and lighting stability, and is the most cost-effective long-term lighting solution for modern all-weather linear lighting scenarios.
Español
Pусский
Français
العربية
WhatsApp
Phone
