Introduction: The Midnight Money Drain You Might Not Notice

Let me share something I see all the time when I visit industrial parks or small municipalities. I walk around at 2 AM, and I see street lights blazing at 100% brightness on empty roads. No cars. No pedestrians. Just rows of lights burning electricity and burning budget.

I call this the "midnight money drain."

For years, we accepted this as normal. You flip a switch at sunset, you flip it off at sunrise. That was the best we could do.

But here is the truth I have learned after working in LED lighting for over a decade: lighting an empty street at full power is like leaving every tap in your building running overnight.

You wouldn't do that. So why do we do it with electricity?

This is exactly why I am excited about public LED street lights with smart photocell sensors. These aren't your grandfather's street lights. They see. They think. They adjust.

And in this guide, I will walk you through everything I have learned about choosing the right one for your project—whether you manage a university campus, a shipping depot, or an entire city's roadway system.

By the end of this article, you will know exactly how to cut your lighting bill by over 75% without leaving anyone in the dark.

What Exactly is a Photocell Sensor? (And Why Should You Care)

I remember explaining this to a facility manager last month. He kept pointing at the small gadget on top of the light and asking, "That little thing saves money?"

Yes. That little thing is magic.

The Simple Science Behind It

A photocell sensor is basically an electronic eye. It measures ambient light levels. When the sun sets and natural light drops below a certain threshold, the sensor tells the light to turn on. When the sun rises, it tells the light to turn off.

That alone saves energy. But the real game-changer is dimming capability.

Here is where it gets clever. A smart photocell sensor doesn't just do "on" and "off." It uses an astro clock—a fancy term for a tiny computer that knows exactly when the sun rises and sets at your specific location .

With this knowledge, the light can run a schedule like this:

No expensive GPS required. The sensor learns and calibrates itself over the first few nights.

Why This Matters for Your Bottom Line

Let me put this in plain terms. A standard light runs at full power for 4,000 hours a year. A smart light with a photocell might only run at full power for 1,500 hours. The rest of the time, it is sipping electricity at half the rate or less.

I have seen energy savings hit 75-80% compared to old high-pressure sodium lamps . That is not a typo.

The Zhaga D4i Standard: Why Certification Matters

You might see the term "Zhaga D4i" floating around. Do not ignore it.

This is an industry standard that guarantees your photocell sensor will work with any Zhaga-certified light fixture. Think of it like USB for street lights. You do not want to get locked into a proprietary system where you can only buy replacement parts from one supplier .

When I advise clients, I always recommend sticking with Zhaga-compliant components. It saves headaches down the road.

The Hard Numbers: How Much Energy Are We Really Saving?

I am an engineer at heart. I do not trust claims without data. So let me share actual numbers from real-world installations.

Comparison 1: HPS vs. LED vs. Smart LED

The table below comes from a case study conducted on Uganda Street in Addis Ababa, comparing traditional High-Pressure Sodium (HPS) lamps against standard LEDs and dimmed (smart) LEDs .

*Estimates based on standard conversion factors.

Look at that bottom row. Seventy-six percent savings. That is not incremental improvement. That is a revolution.

Comparison 2: Dimming Profiles and Energy Use

Let me break down how those savings happen. Another study tracked exactly when energy was used throughout the night .

You see the pattern? The light is only hungry during dinner time. In the dead of night, it barely sips electricity. And here is the kicker—most people never notice the difference because their eyes adjust, and the light spread remains uniform.

The 5-Year Total Cost of Ownership

I always tell my clients: do not look at the purchase price. Look at the 5-year total cost.

This data comes from a comprehensive market analysis of street lighting products .

The smart light costs more upfront. I will not lie to you. But after five years, you have saved $3,440 compared to the old HPS system. And the smart light still has 45,000 hours of life left.

That is not spending. That is investing.

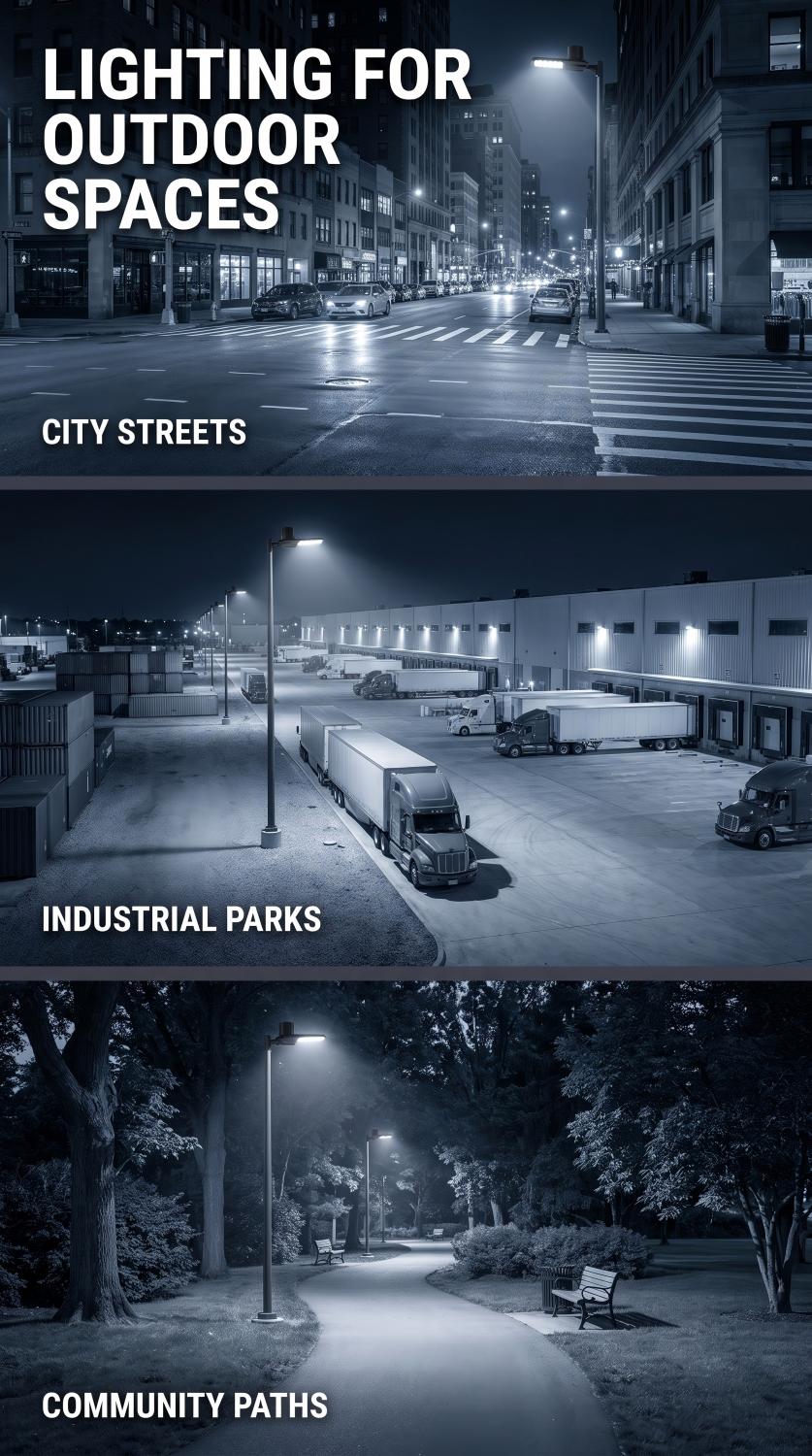

Real-World Applications: Where Smart Lighting Shines Brightest

I have installed these lights everywhere from coastal ports to mountain campuses. Here is where they make the biggest difference.

1. University and Corporate Campuses

These places are 24/7 operations, but traffic patterns are predictable.

From 8 AM to 6 PM, parking lots are packed. From 10 PM to 5 AM, they are empty. A photocell sensor dims the lights to 20% during the empty hours and brightens them instantly when motion is detected.

I worked with one corporate park that cut its lighting bill by $47,000 in the first year just by retrofitting their parking lots.

2. Industrial Parks and Logistics Centers

Truck depots never sleep, but they have peak and off-peak hours.

The beauty of smart lighting here is zone control. You can keep loading docks at 80% while dimming the back corner of the parking lot to 10%. The photocell sensor handles this automatically.

One logistics client told me his drivers actually prefer the new system. "The old lights were either blinding or broken," he said. "Now they are just right."

3. Municipal Roadways and Residential Streets

City budgets are tight. Every dollar saved on electricity is a dollar for schools or road repairs.

Smart street lights with photocell sensors pay for themselves within 2-3 years on municipal roads . After that, the savings go straight back to the city.

4. Perimeter Security Lighting

Here is a trick I learned from a security director. Set your dimming profile to 20% from midnight to 4 AM, but install motion sensors on top of the photocell.

When someone walks into the area, the lights instantly jump to 100%. The intruder is suddenly standing in a spotlight. It is a huge psychological deterrent, and you save energy the rest of the time.

Selection Guide: How to Choose the Right Public LED Street Light

I get asked this every week. "Roy, there are a thousand options. Which one do I pick?"

Let me simplify it for you.

Step 1: Determine Your Lumen Requirements

Do not get lost in technical jargon. Just ask yourself these questions:

• How wide is the road or area? A 20-foot residential street needs less power than a 100-foot shipping yard.

• How tall are your poles? Higher poles need higher lumen output to reach the ground effectively.

• What is the speed limit? Faster traffic needs better visibility and more uniform light distribution.

Here is a rule of thumb I use:

Step 2: Pick Your Color Temperature (Kelvin)

Color temperature affects visibility and mood. It is measured in Kelvin (K).

• 3000K (Warm White): Feels cozy. Good for pedestrian areas, parks, historic districts. Less glare.

• 4000K (Neutral White): The sweet spot. Excellent for roads, parking lots, general security. Most commercial projects use this .

• 5000K (Cool White): Very bright, almost blueish. Best for high-security areas, ports, industrial zones where visibility is critical.

My recommendation? Start with 4000K. It is the most versatile and what I specify for 80% of my projects.

Step 3: Verify the Photocell Compatibility

Not all photocells work with all lights. Check three things:

1. Is it Zhaga D4i certified? If yes, you are safe. If no, ask for compatibility documentation.

2. What is the dimming range? Good sensors dim from 100% down to 10% or even off. Cheap ones only go to 50%.

3. Is the astro clock programmable? You need to set your own schedule, not just rely on light/dark detection.

Step 4: Check Efficacy (Lumens per Watt)

This measures how efficient the light is. Higher is better.

I usually recommend aiming for 130-150 lm/W. That is where the technology is mature but not overpriced .

Durability Factors: IP Ratings, Materials, and Lifespan Explained

I have pulled lights out of the box that were already cracked. I have seen fixtures fail in six months because someone cheaped out on the housing.

Do not let that be you.

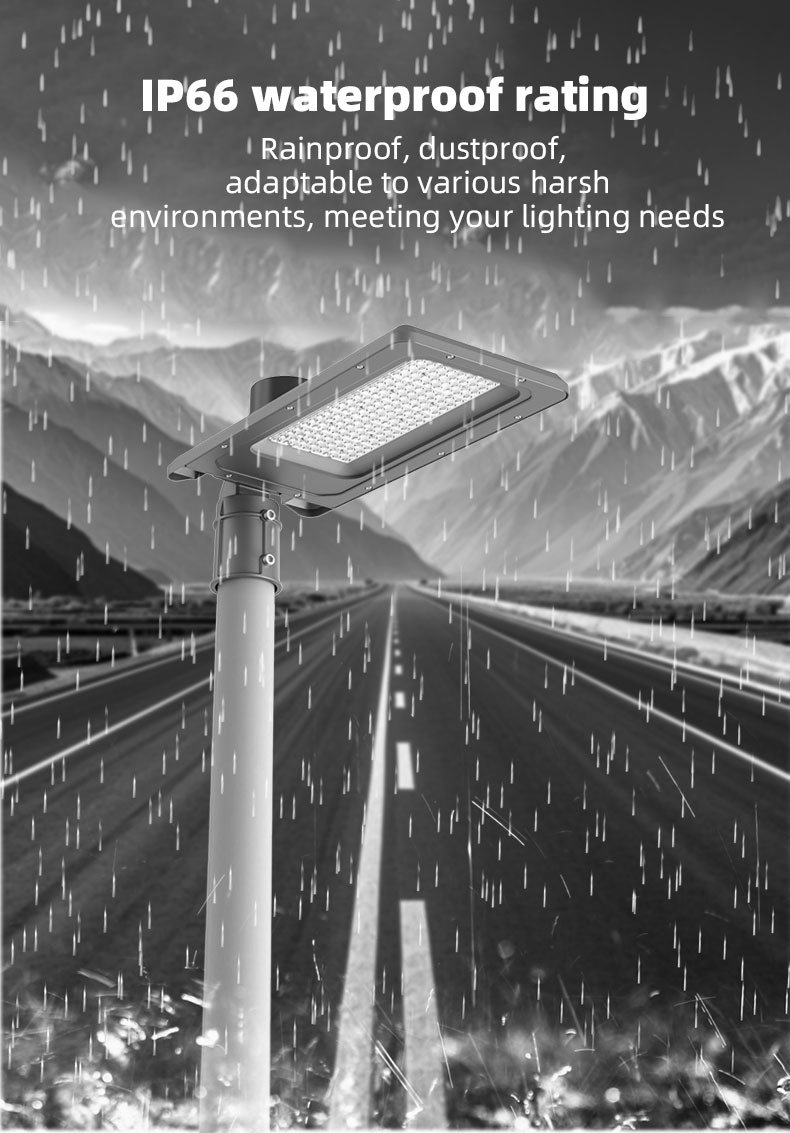

IP Rating: The Dust and Water Protection Code

IP stands for "Ingress Protection." The first number is dust. The second is water.

• IP65: Totally dust-tight. Protected against low-pressure water jets. This is the minimum for outdoor street lights.

• IP66: Totally dust-tight. Protected against powerful water jets (think heavy rain or a pressure washer). This is what I recommend for most applications .

• IP67: Totally dust-tight. Can be temporarily submerged in 1 meter of water. Use this in flood-prone areas or coastal zones.

If a vendor tries to sell you an IP64 or lower for outdoor road lighting, walk away. You will be replacing them within a year.

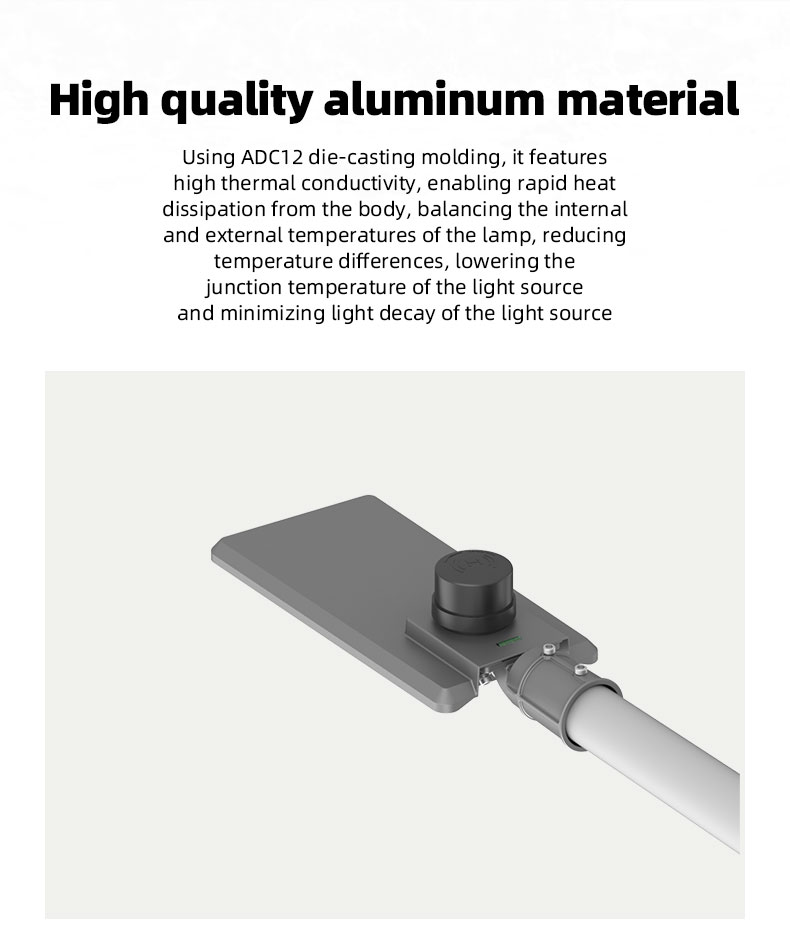

Housing Material: Die-Cast Aluminum is Your Friend

Look for die-cast aluminum. Here is why:

• It dissipates heat better than plastic. Heat is the number one killer of LEDs.

• It resists corrosion, especially with an added powder coating.

• It is strong enough to withstand hail, vandalism, and years of wind vibration.

I have seen die-cast aluminum lights last 15 years in coastal Florida. The salt air destroys painted steel in 3 years.

Lifespan: L70 vs. L80 vs. L90

manufacturers throw around "50,000 hours" like it means something. Let me translate.

L70 means the light will still produce 70% of its original brightness after 50,000 hours. That is the industry standard. But 30% loss is noticeable.

Ask for L80 or even L90 ratings. These fixtures cost more upfront but look significantly better after a decade of use.

For reference, quality LED street lights with good heat management achieve 60,000+ hours to L70 . Smart lights with dimming actually last longer because they run at lower temperatures during off-peak hours.

Common Issues and Practical Troubleshooting Tips

I have seen it all. Let me save you some headaches.

Issue 1: The Light Flickers at Dawn or Dusk

What is happening: The photocell sensor is "hunting." It detects light, turns off, then realizes it is still dark, and turns back on. This cycles.

The fix: Most quality sensors have a built-in time delay (30-60 seconds). If yours does not, replace the sensor with one that does. This is a $15 fix that takes five minutes.

Issue 2: Lights Stay On All Day

What is happening: Either the photocell is covered in dirt, or it is mounted in a location that never gets direct sunlight (under a tree, in a narrow alley).

The fix: Clean the sensor lens first. If that does not work, relocate the sensor to a spot with unobstructed sky view. Worst case, the sensor has failed and needs replacement.

Issue 3: Dimming Schedule is Wrong for the Season

What is happening: You set the schedule in summer, but now it is winter. The sun sets earlier, but your light still turns on at the old time.

The fix: This is why I insist on astro clock sensors. They adjust automatically day by day. If yours does not have this feature, you will need to manually update the schedule four times a year.

Issue 4: Uneven Light Distribution

What is happening: The beam angle is wrong for your pole spacing. You have dark spots between poles or bright spots directly underneath.

The fix: Look for lights with Type II, III, or IV light distributions. Type III is the most common for roadside applications—it throws light forward and to the sides evenly . Do not buy lights with symmetric beam patterns for roads.

Issue 5: Premature Dimming or Failure in Hot Weather

What is happening: The driver or LED chips are overheating. Cheap fixtures have poor thermal management.

The fix: Check the operating temperature range on the spec sheet. Good fixtures are rated for -40°C to +50°C (-40°F to +122°F) . If your area exceeds that, look for "high temperature" rated versions with larger heat sinks.

Frequently Asked Questions (FAQ)

Q1: Can I add a photocell sensor to my existing street lights?

Short answer: Yes, if they have a standard NEMA or Zhaga socket.

Long answer: Many older lights do not have these sockets. You would need to either replace the entire fixture or hire an electrician to rewire the control compartment. In most cases, replacing the whole fixture with a modern LED + photocell unit is actually cheaper when you factor in labor costs. I always recommend starting fresh.

Q2: How long do the photocell sensors themselves last?

Quality sensors last 5 to 10 years, which is slightly less than the LED fixture itself (10-15 years). The good news is they are user-replaceable. You unscrew the old one, screw in a new one, and you are done. No wiring. No electrician.

Always buy sensors from reputable brands and keep a few spares in your maintenance shed.

Q3: Will dimming at night make roads less safe?

I get this question constantly. The data says no.

Properly designed dimming profiles keep light levels above safety standards even at 30% power. The reason is simple: your eyes adapt to darkness. A uniformly dimmed road is actually safer than a road with bright spots and dark spots.

Plus, most smart systems brighten instantly when motion is detected. So if a car or pedestrian approaches, the light returns to 100% within milliseconds .

Q4: What is the payback period for switching to smart LED street lights?

Based on current electricity rates in most markets, expect 2 to 4 years for the payback period .

If your electricity is expensive (Hawaii, Europe, Japan), you might see payback in 18 months. If electricity is cheap (some parts of the Midwest US or China), it might take 5 years.

But here is the thing: LEDs last much longer than old bulbs. So even with a 5-year payback, you get 5-10 years of pure savings afterward.

Q5: Can smart street lights integrate with my existing building management system?

Yes, if they use open standards.

Look for lights and sensors that support Zigbee, LoRaWAN, or NB-IoT communication protocols. These allow you to monitor every light from a central dashboard. You can see which lights are on, which are dimmed, and which have failed, all from your laptop .

If you are not ready for a full central system, standalone photocell sensors work perfectly well on their own. You can always add the networking layer later.

Final Verdict: Making the Smart Switch Today

I have been in this industry long enough to see trends come and go. Smart lighting is not a trend. It is the new baseline.

The old way—burning full power all night, every night—is finished. Municipalities that stick with HPS or dumb LEDs are throwing money away. Literally. Every night, their budget goes up in heat and light that nobody needs.

Public LED street lights with smart photocell sensors give you three things that matter:

1. Control over exactly when and how bright your lights shine.

2. Savings of 50-75% on your electricity bill, year after year.

3. Reliability that keeps roads safe without constant maintenance calls.

At Jiangsu Rongya Electronic Technology Co., Ltd. (ROYAL), we have built our reputation on helping global buyers make this transition smoothly. Our lights are Zhaga-compliant, IP66-rated, and built with the same care whether you are ordering 50 units or 5,000.

My advice? Start with a pilot project. Pick one street, one parking lot, one campus section. Install smart lights. Measure the savings for six months.

The numbers will convince you. They always do.

If you have questions about specific applications or want to see our product lineup, reach out. I personally review every major inquiry because I believe in getting the details right.

Here is to lighting smarter, not harder.
